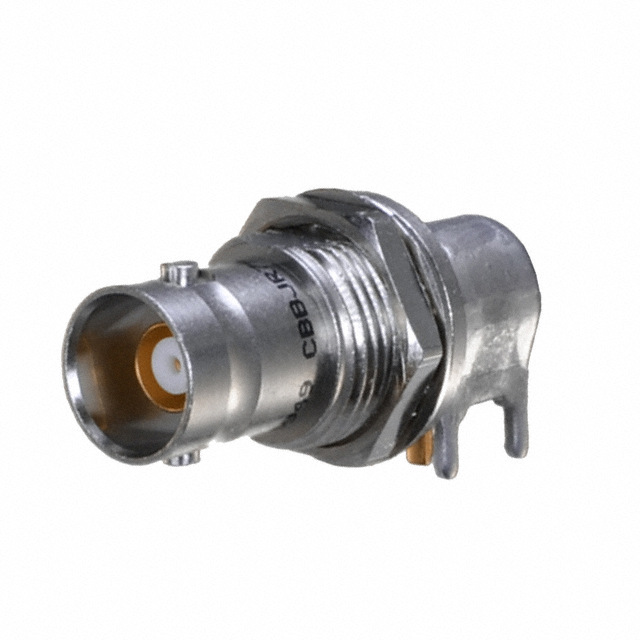

CBBJR79TL

Active

Cinch Connectivity Solutions Trompeter

CONN TRB JACK R/A PCB

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN TRB JACK R/A PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CBBJR79TL	CBBJR Series

Body Finish	Tin	Nickel, Tin
Body Material	Brass	Brass
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	Twinaxial/Triaxial, TRB	BNC, Twinaxial, Twinaxial/Triaxial, TRB
Connector Type	Female Socket (Concentric), Jack	Female Socket, Jack, Male Pin (Concentric), Female Socket (Concentric)
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Features	-	Board Guide
Frequency - Max [Max]	500 MHz	500 MHz
Housing Color	Silver	Silver
Impedance	Non-Constant	Non-Constant
Includes	Connector, Washer, Nut	Connector, Washer, Nut
Mating Cycles	500	500
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Solder	Solder
Voltage Rating	400 V	400 V

CONN TWINAX JACK R/A PCB

Part	Fastening Type	Housing Color	Contact Termination	Body Finish	Features	Frequency - Max [Max]	Connector Type	Body Material	Includes	Shield Termination	Mounting Type	Number of Ports	Center Contact Plating	Connector Style	Mounting Feature	Dielectric Material	Voltage Rating	Mating Cycles	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material
Cinch Connectivity Solutions Trompeter CBBJR39A	Bayonet Lock	Silver	Solder	Nickel	Board Guide	500 MHz	Female Socket, Jack, Male Pin (Concentric)	Brass	Connector, Nut, Washer	Solder	Panel Mount, Right Angle, Through Hole	1	Gold	BNC, Twinaxial	Bulkhead - Front Side Nut
Cinch Connectivity Solutions Trompeter CBBJR79TL	Bayonet Lock	Silver	Solder	Tin		500 MHz	Female Socket (Concentric), Jack	Brass	Connector, Nut, Washer	Solder	Panel Mount, Right Angle, Through Hole	1	Gold	TRB, Twinaxial/Triaxial	Bulkhead - Front Side Nut	Polytetrafluoroethylene (PTFE)	400 V	500	Non-Constant	-65 ░C	165 °C	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRB, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Non-Constant Panel Mount, Through Hole, Right Angle Solder
