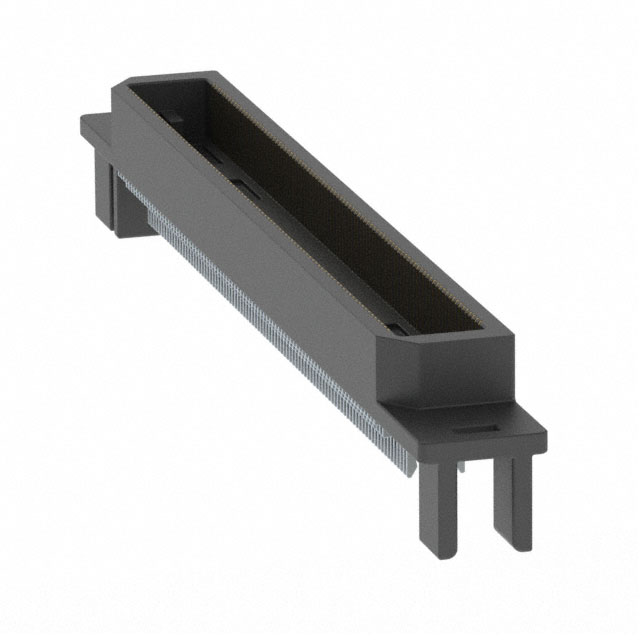

Specification	BTH-090-01-F-D-EM2

Connector Type	Outer Shroud Contacts, Header
Contact Finish	Gold
Contact Finish Thickness	3 µin
Mounting Type	Straddle Mount, Board Edge
Number of Positions	180
Number of Rows	2
Pitch	0.02 in

BTH-090 Series

Part	Contact Finish	Mated Stacking Height	Number of Positions	Contact Finish Thickness	Mounting Type	Pitch	Number of Rows	Features	Connector Type	Height Above Board
Samtec Inc. BTH-090-01-L-D-A-K-TR	Gold	5 mm	180	10 Ąin	Surface Mount	0.02 in	2	Board Guide Pick and Place	Header Outer Shroud Contacts	0.168 in
Samtec Inc. BTH-090-01-H-D-A	Gold	5 mm	180	30 µin	Surface Mount	0.02 in	2	Board Guide	Header Outer Shroud Contacts	0.168 in
Samtec Inc. BTH-090-02-F-D-A	Gold	8 mm	180	3 µin	Surface Mount	0.02 in	2	Board Guide	Header Outer Shroud Contacts	0.286 in
Samtec Inc. BTH-090-04-F-D-A-K	Gold	16 mm	180	3 µin	Surface Mount	0.02 in	2	Board Guide Pick and Place	Header Outer Shroud Contacts	0.6 in
Samtec Inc. BTH-090-02-F-D-A-TR	Gold	8 mm	180	3 µin	Surface Mount	0.02 in	2	Board Guide	Header Outer Shroud Contacts	0.286 in
Samtec Inc. BTH-090-04-L-D-A-TR	Gold	16 mm	180	10 Ąin	Surface Mount	0.02 in	2	Board Guide	Header Outer Shroud Contacts	0.6 in
Samtec Inc. BTH-090-02-L-D-A-TR	Gold	8 mm	180	10 Ąin	Surface Mount	0.02 in	2	Board Guide	Header Outer Shroud Contacts	0.286 in
Samtec Inc. BTH-090-05-H-D-A	Gold	19 mm	180	30 µin	Surface Mount	0.02 in	2	Board Guide	Header Outer Shroud Contacts	0.718 in
Samtec Inc. BTH-090-06-F-D	Gold	22 mm	180	3 µin	Surface Mount	0.02 in	2		Header Outer Shroud Contacts	0.836 in
Samtec Inc. BTH-090-01-H-D-LC	Gold	5 mm	180	30 µin	Surface Mount	0.02 in	2	Board Lock	Header Outer Shroud Contacts	0.168 in
