1215-3 Series

Part	Mounting Hole Diameter	Termination	Pin Size - Above Flange	Pin Size - Above Flange (Shape)	Length - Above Flange	Terminal Style	Contact Finish Thickness	Terminal Type	Flange Diameter	Insulation	Contact Finish	Length - Overall	Mounting Type	Contact Material
Mill-Max Manufacturing Corp. 1215-3-05-15-00-00-01-0	0.043 in	Press-Fit Wire Wrap	0.025 in	Square	0.87 in	Single End	10 Ąin	PC Pin	0.072 in	Non-Insulated	Gold	0.9 in	Through Hole	Brass Alloy

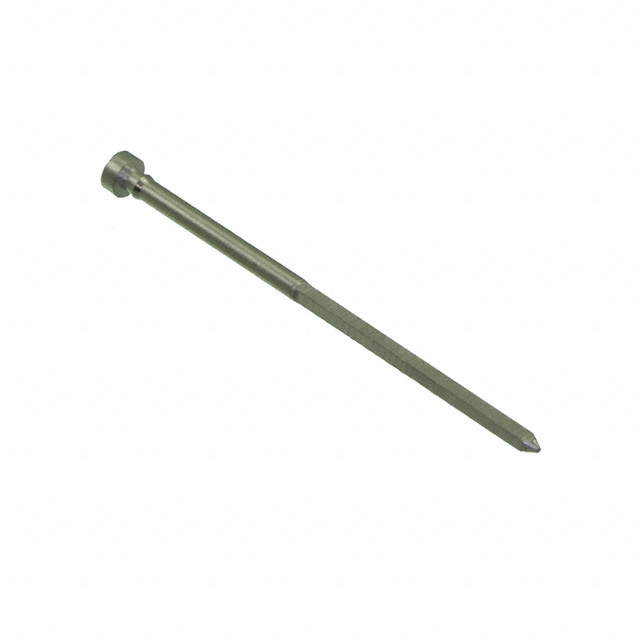

Mill-Max Manufacturing Corp. 1215-3-05-80-00-00-01-0	0.043 in	Press-Fit Wire Wrap	0.025 in	Square	0.87 in	Single End	200 µin	PC Pin	0.072 in	Non-Insulated	Tin	0.9 in	Through Hole	Brass Alloy
Mill-Max Manufacturing Corp. 1215-3-05-21-00-00-01-0	0.043 in	Press-Fit Wire Wrap	0.025 in	Square	0.87 in	Single End	20 µin	PC Pin	0.072 in	Non-Insulated	Gold	0.9 in	Through Hole	Brass Alloy
Mill-Max Manufacturing Corp. 1215-3-05-01-00-00-01-0	0.043 in	Press-Fit Wire Wrap	0.025 in	Square	0.87 in	Single End	200 µin	PC Pin	0.072 in	Non-Insulated	Tin-Lead	0.9 in	Through Hole	Brass Alloy
