0041.9146.5327

Active

SCHURTER Inc.

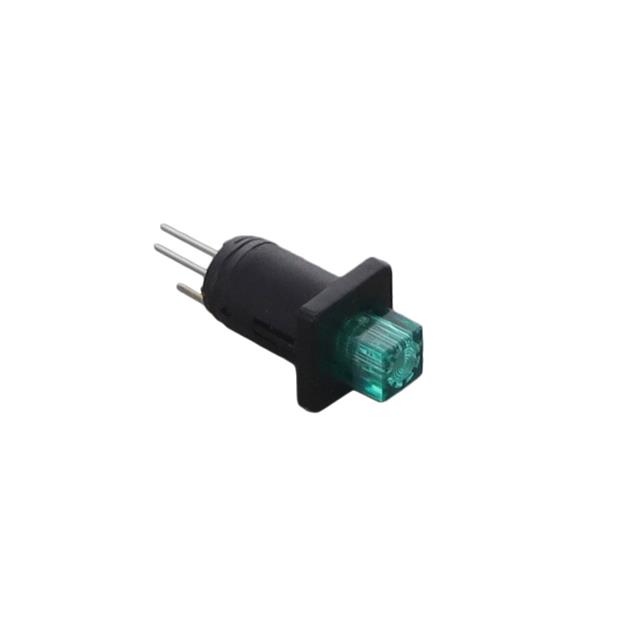

SWITCH PUSH SPST-NO 200MA 60V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 200MA 60V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	0041.9146.5327	0041.9146 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Button, Square	Button, Square
Circuit	SPST-NO	SPST-NO
Color - Actuator/Cap	Green	Green, Red
Current Rating (Amps)	200 mA	200 mA
Electrical Life	10000 Cycles	10000 Cycles
Illumination Type, Color	LED, Green	LED, Green, Red
Illumination Voltage (Nominal)	2 VDC	2 VDC
Ingress Protection	IP40	IP40
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	8 mm	8 mm
Switch Function	Off-Mom	Off-Mom
Termination Style	PC Pin	PC Pin
Type	Illuminated, Standard	Illuminated, Standard
Voltage Rating - AC	60 V	60 V
Voltage Rating - DC	50 VDC	50 VDC

SWITCH PUSH SPST-NO 200MA 60V

Part	Voltage Rating - AC	Circuit	Mounting Type	Voltage Rating - DC	Color - Actuator/Cap	Illumination Type, Color	Illumination Voltage (Nominal)	Actuator Marking	Termination Style	Current Rating (Amps)	Switch Function	Mechanical Life	Electrical Life	Ingress Protection	Panel Cutout Dimensions [diameter]	Type	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]
SCHURTER Inc. 0041.9146.5327	60 V	SPST-NO	Panel Mount, Front	50 VDC	Green	Green, LED	2 VDC	No Marking	PC Pin	200 mA	Off-Mom	10000 Steps	10000 Cycles	IP40	8 mm	Illuminated, Standard	Button, Square	-25 °C	60 °C
SCHURTER Inc. 0041.9146.1337	60 V	SPST-NO	Panel Mount, Front	50 VDC				No Marking	PC Pin	200 mA	Off-Mom	10000 Steps	10000 Cycles	IP40	8 mm	Illuminated, Standard	Button, Square	-25 °C	60 °C
SCHURTER Inc. 0041.9146.3317	60 V	SPST-NO	Panel Mount, Front	50 VDC	Red	LED, Red	2 VDC	No Marking	PC Pin	200 mA	Off-Mom	10000 Steps	10000 Cycles	IP40	8 mm	Illuminated, Standard	Button, Square	-25 °C	60 °C
