CLA1B-MKW-XD0E0E53

Obsolete

Cree LED

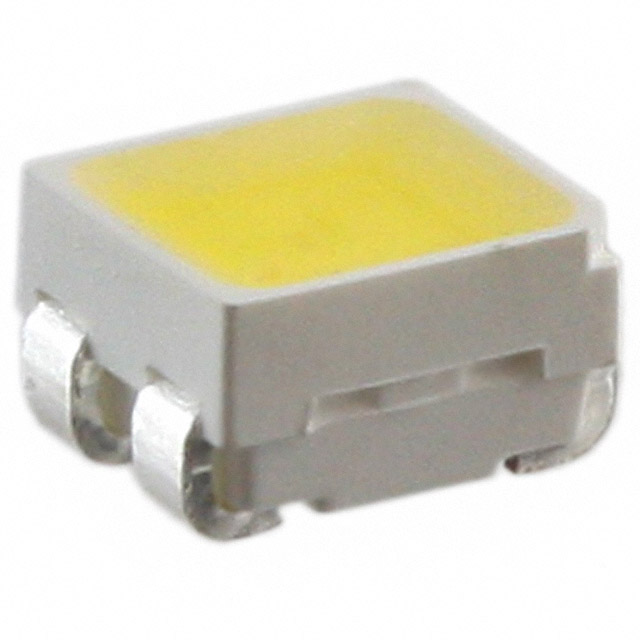

LED CLA1B-WKW/MKW WARM WHT 4PLCC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLA1B-MKW-XD0E0E53

Obsolete

Cree LED

LED CLA1B-WKW/MKW WARM WHT 4PLCC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CLA1B-MKW-XD0E0E53	CLA1B Series

CCT (K)	-	3600 K
Color	White, Warm	White, Warm, Cool
CRI (Color Rendering Index)	80	75 - 80
Current - Max [Max]	80 mA	80 mA
Current - Test	30 mA	30 mA
Flux @ 25°C, Current - Test	9 lm	9 - 10 lm
Flux @ 25°C, Current - Test [Max]	11 lm	11 - 14 lm
Flux @ 25°C, Current - Test [Min]	6 lm	6 - 8 lm
Height - Seated (Max) [Max] [z]	2.1 mm	2.1 mm
Height - Seated (Max) [Max] [z]	0.083 "	0.083 "
Lumens/Watt @ Current - Test	35 lm/W	35 - 105 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	4-PLCC	4-PLCC
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [x]	0.126 in	0.126 in
Size / Dimension [y]	0.11 in	0.11 in
Size / Dimension [y]	2.8 mm	2.8 mm
Supplier Device Package	4-PLCC	4-PLCC
Thermal Resistance of Package [custom]	120 °C/W	120 °C/W
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	3.2 V	3.2 V

CLA1B Series

LED CLA1B-WKW/MKW WARM WHT 4PLCC

Part	CRI (Color Rendering Index)	Current - Test	Mounting Type	Viewing Angle	Package / Case	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Min]	Thermal Resistance of Package [custom]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Color	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Max [Max]	Supplier Device Package	CCT (K)
Cree LED CLA1B-MKW-XD0F0E63	80	30 mA	Surface Mount	120 °	4-PLCC	39 lm/W	3.2 V	14 lm	10 lm	6 lm	120 °C/W	3.2 mm	0.126 in	0.11 in	2.8 mm	Warm, White	2.1 mm	0.083 "	80 mA	4-PLCC
Cree LED CLA1B-WKW-XD0F0DZ3	75	30 mA	Surface Mount	120 °	4-PLCC	105 lm/W	3.2 V	14 lm	10 lm	6 lm	120 °C/W	3.2 mm	0.126 in	0.11 in	2.8 mm	Cool, White	2.1 mm	0.083 "	80 mA	4-PLCC
Cree LED CLA1B-WKW-XE0F0DT3	75	30 mA	Surface Mount	120 °	4-PLCC	43 lm/W	3.2 V	14 lm		8 lm	120 °C/W	3.2 mm	0.126 in	0.11 in	2.8 mm	Cool, White	2.1 mm	0.083 "	80 mA	4-PLCC
Cree LED CLA1B-WKW-XE0F0E23		30 mA	Surface Mount	120 °	4-PLCC	43 lm/W	3.2 V	14 lm		8 lm	120 °C/W	3.2 mm	0.126 in	0.11 in	2.8 mm	Cool, White	2.1 mm	0.083 "	80 mA	4-PLCC
Cree LED CLA1B-MKW-XD0E0A33	80	30 mA	Surface Mount		4-PLCC	94 lm/W	3.2 V	11 lm	9 lm	6 lm	120 °C/W	3.2 mm	0.126 in	0.11 in	2.8 mm	Warm, White	2.1 mm	0.083 "	80 mA	4-PLCC	3600 K
Cree LED CLA1B-MKW-XD0F0F53	80	30 mA	Surface Mount	120 °	4-PLCC	39 lm/W	3.2 V	14 lm	10 lm	6 lm	120 °C/W	3.2 mm	0.126 in	0.11 in	2.8 mm	Warm, White	2.1 mm	0.083 "	80 mA	4-PLCC
Cree LED CLA1B-MKW-XD0E0E53	80	30 mA	Surface Mount	120 °	4-PLCC	35 lm/W	3.2 V	11 lm	9 lm	6 lm	120 °C/W	3.2 mm	0.126 in	0.11 in	2.8 mm	Warm, White	2.1 mm	0.083 "	80 mA	4-PLCC
Cree LED CLA1B-MKW-XD0F0A43	80	30 mA	Surface Mount	120 °	4-PLCC	39 lm/W	3.2 V	14 lm	10 lm	6 lm	120 °C/W	3.2 mm	0.126 in	0.11 in	2.8 mm	Warm, White	2.1 mm	0.083 "	80 mA	4-PLCC
Cree LED CLA1B-MKW-XD0E0A83	80	30 mA	Surface Mount		4-PLCC	94 lm/W	3.2 V	11 lm	9 lm	6 lm	120 °C/W	3.2 mm	0.126 in	0.11 in	2.8 mm	Warm, White	2.1 mm	0.083 "	80 mA	4-PLCC	3600 K
Cree LED CLA1B-MKW-XD0E0F73	80	30 mA	Surface Mount		4-PLCC	94 lm/W	3.2 V	11 lm	9 lm	6 lm	120 °C/W	3.2 mm	0.126 in	0.11 in	2.8 mm	Warm, White	2.1 mm	0.083 "	80 mA	4-PLCC	3600 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CLA1B Series

LED Lighting CLA1B-WKW/MKW White, Warm 3.2V 30mA 120° 4-PLCC
