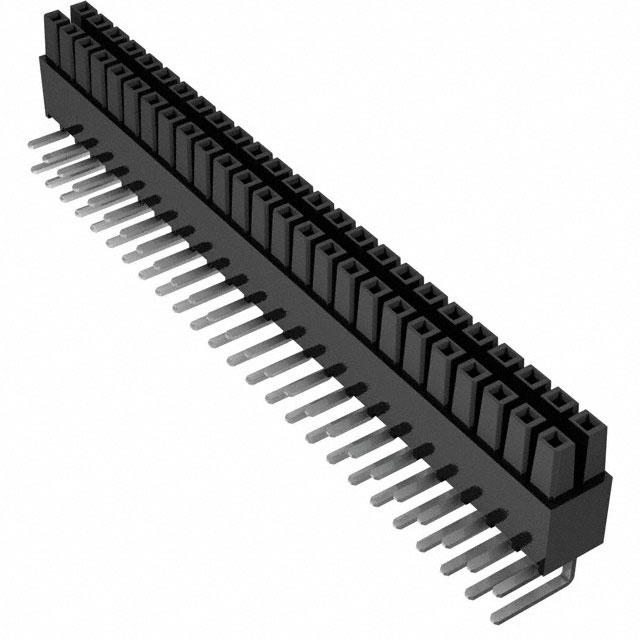

IPS1-125-01-S-D-RA

Active

Samtec Inc.

CONN RCPT 50POS 0.1 GOLD PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet IPS1 Datasheet +1

IPS1-125-01-S-D-RA

Active

Samtec Inc.

CONN RCPT 50POS 0.1 GOLD PCB R/A

Deep-Dive with AI

DocumentsDatasheet IPS1 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPS1-125-01-S-D-RA

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.195 in
Insulation Height	4.95 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole, Right Angle
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	775 VAC, 1095 VDC

IPS1-125 Series

Power to the Board .100" Mini Mate Isolated Power Connector Socket Strip

Part	Insulation Material	Contact Material	Number of Positions	Voltage Rating	Contact Finish - Post	Insulation Color	Contact Type	Connector Type	Fastening Type	Contact Finish - Mating	Mounting Type	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Termination	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Shape	Contact Length - Post	Contact Length - Post	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded [custom]
Samtec Inc. IPS1-111-01-SM-D-VS	Liquid Crystal Polymer (LCP)	Phosphor Bronze	22 positions	775 VAC 1095 VDC	Tin	Black	Female Socket	Receptacle	Push-Pull	Gold	Surface Mount	0.335 "	8.51 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	All	-55 °C	125 °C	2	Square
Samtec Inc. IPS1-125-01-S-D-FL	Liquid Crystal Polymer (LCP)	Phosphor Bronze	50	775 VAC 1095 VDC	Tin	Black	Female Socket	Receptacle	Push-Pull	Gold	Through Hole	0.335 "	8.51 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	All	-55 °C	125 °C	2	Square	2.54 mm	0.1 in	Friction Lock	30 Áin	0.76 Ám
Samtec Inc. IPS1-125-01-S-D-PL	Liquid Crystal Polymer (LCP)	Phosphor Bronze	50	775 VAC 1095 VDC	Tin	Black	Female Socket	Receptacle	Push-Pull	Gold	Through Hole	0.335 "	8.51 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder		-55 °C	125 °C	2	Square	2.54 mm	0.1 in		30 Áin	0.76 Ám	49
Samtec Inc. IPS1-125-01-S-D-RA	Liquid Crystal Polymer (LCP)	Phosphor Bronze	50	775 VAC 1095 VDC	Tin	Black	Female Socket	Receptacle	Push-Pull	Gold	Through Hole Right Angle	0.195 in	4.95 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	All	-55 °C	125 °C	2	Square	2.54 mm	0.1 in		30 Áin	0.76 Ám
Samtec Inc. IPS1-125-01-L-D-RA	Liquid Crystal Polymer (LCP)	Phosphor Bronze	50	775 VAC 1095 VDC	Tin	Black	Female Socket	Receptacle	Push-Pull	Gold	Through Hole Right Angle	0.195 in	4.95 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	All	-55 °C	125 °C	2	Square	2.54 mm	0.1 in		10 çin	0.25 çm
Samtec Inc. IPS1-125-01-L-D-VS	Liquid Crystal Polymer (LCP)	Phosphor Bronze	50	775 VAC 1095 VDC	Tin	Black	Female Socket	Receptacle	Push-Pull	Gold	Surface Mount	0.335 "	8.51 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	All	-55 °C	125 °C	2	Square				10 çin	0.25 çm
Samtec Inc. IPS1-110-01-L-D-VS	Liquid Crystal Polymer (LCP)	Phosphor Bronze	20	775 VAC 1095 VDC	Tin	Black	Female Socket	Receptacle	Push-Pull	Gold	Surface Mount	0.335 "	8.51 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	All	-55 °C	125 °C	2	Square				10 çin	0.25 çm
Samtec Inc. IPS1-125-01-S-D-VS-LC	Liquid Crystal Polymer (LCP)	Phosphor Bronze	50	775 VAC 1095 VDC	Tin	Black	Female Socket	Receptacle	Push-Pull	Gold	Surface Mount	0.335 "	8.51 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	All	-55 °C	125 °C	2	Square				30 Áin	0.76 Ám
Samtec Inc. IPS1-115-01-S-D-VS-LC-K	Liquid Crystal Polymer (LCP)	Phosphor Bronze	30	775 VAC 1095 VDC	Tin	Black	Female Socket	Receptacle	Push-Pull	Gold	Surface Mount	0.335 "	8.51 mm	2.54 mm	0.1 in	0.1 in	2.54 mm	Solder	All	-55 °C	125 °C	2	Square			Board Lock Pick and Place	30 Áin	0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 10.19
		10	$ 9.42
		25	$ 8.90
		50	$ 8.58
		100	$ 8.00
