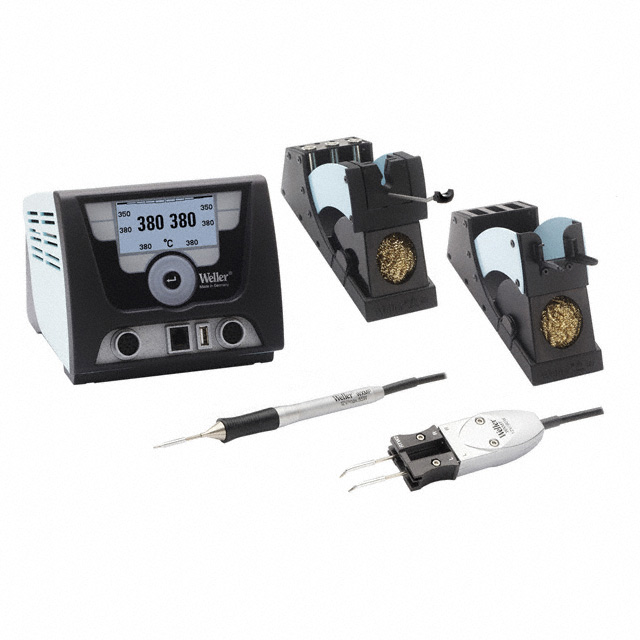

WX2021N

Active

Apex Tool Group

SOLDERING STATION 200W 2 CH 120V

Search across all available documentation for this part.

Active

Apex Tool Group

SOLDERING STATION 200W 2 CH 120V

Technical Specifications

Parameters and characteristics for this part

Specification	WX2021N

Base Unit	WX2
Control/Display Type	Digital
Features	USB Port, LCD Display, Auto Off, Touch Screen, ESD Safe
Includes	Iron Holder (2)
Number of Channels [custom]	2
Plug Type	NEMA 5-15
Supplied Iron, Tweezer, Handle	WXMP, WXMT
Supplied Tips/Nozzles	RTW2, RT3
Temperature Range [Max]	450 °C
Temperature Range [Max]	850 °F
Temperature Range [Min]	100 °C
Temperature Range [Min]	200 °F
Tip Cleaner	Scouring Pad
Type	Soldering
Voltage - Input	120 V
Voltage - Output	24 V, 12 V
Wattage	200 W
Workstand	WDH51, WDH60

SOLDERING STATION 200W 2 CH 120V

Part	Supplied Tips/Nozzles	Control/Display Type	Voltage - Output	Tip Cleaner	Workstand	Number of Channels [custom]	Type	Temperature Range [Min]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Max]	Includes	Voltage - Input	Base Unit	Plug Type	Features	Supplied Iron, Tweezer, Handle	Wattage
Apex Tool Group WX2021N	RT3, RTW2	Digital	12 V, 24 V	Scouring Pad	WDH51, WDH60	2	Soldering	100 °C	200 °F	450 °C	850 °F	Iron Holder (2)	120 V	WX2	NEMA 5-15	Auto Off, ESD Safe, LCD Display, Touch Screen, USB Port	WXMP, WXMT	200 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1460.00
