163A18649X

Active

Amphenol CONEC

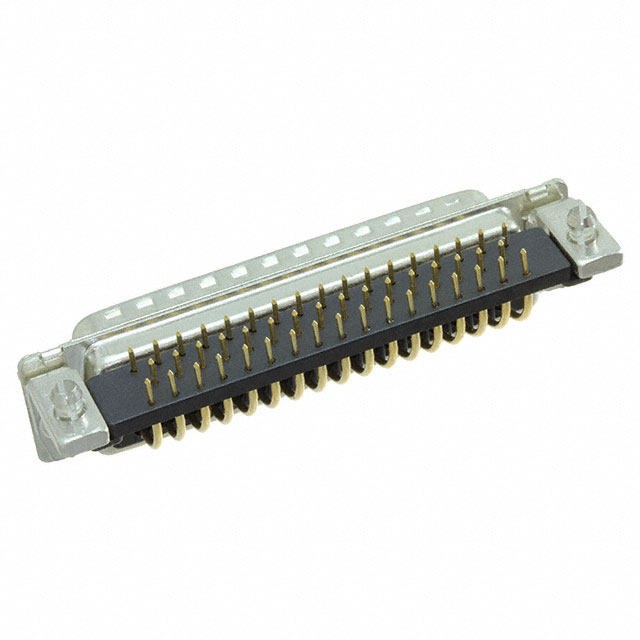

CONN D-SUB PLUG 50POS R/A SLDR

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB PLUG 50POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	163A18649X

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5
Termination	Solder
Voltage Rating	125 VDC

Part	Number of Rows	Number of Positions	Color	Features	Contact Finish	Contact Material	Material Flammability Rating	Contact Finish Thickness	Dielectric Material	Connector Type	Contact Type	Current Rating (Amps)	Shell Size, Connector Layout	Mounting Type	Backset Spacing	Backset Spacing	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Flange Feature	Voltage Rating	Shell Size, Connector Layout
Amphenol CONEC 163A18639X	2	37	Black	Board Lock Grounding Indents	Gold	Copper Alloy	UL94 V-0	Flash	Polybutylene Terephthalate (PBT) Glass Filled	Male Pins Plug	Signal	7.5 A	4 (DC C)	Board Edge Right Angle Through Hole	0.283 in	7.2 mm	Solder	-55 °C	125 °C	D-Sub	4-40	125 VDC
Amphenol CONEC 163A18649X	3	50	Black	Board Lock Grounding Indents	Gold	Copper Alloy	UL94 V-0	Flash	Polybutylene Terephthalate (PBT) Glass Filled	Male Pins Plug	Signal	7.5 A		Board Edge Right Angle Through Hole	0.283 in	7.2 mm	Solder	-55 °C	125 °C	D-Sub	4-40	125 VDC	5
Amphenol CONEC 163A18619X	2	15	Black	Board Lock Grounding Indents	Gold	Copper Alloy	UL94 V-0	Flash	Polybutylene Terephthalate (PBT) Glass Filled	Male Pins Plug	Signal	7.5 A		Board Edge Right Angle Through Hole	0.283 in	7.2 mm	Solder	-55 °C	125 °C	D-Sub	4-40	125 VDC	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position D-Sub Plug, Male Pins Connector
