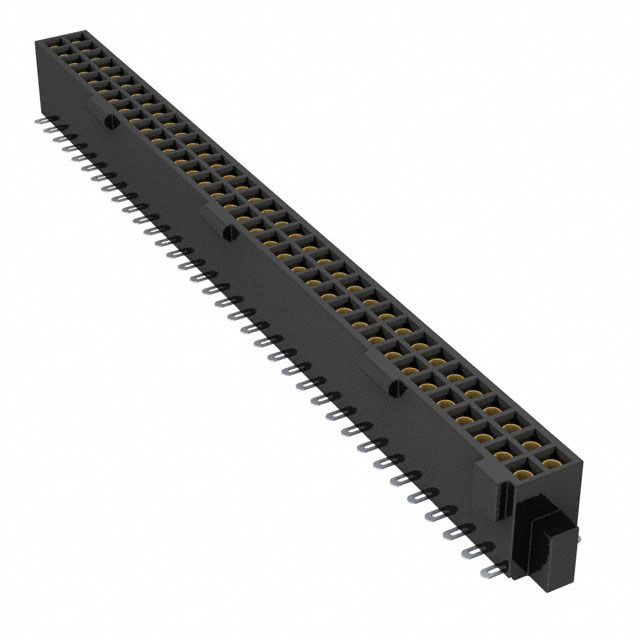

SFML-135-T2-S-D

Active

Samtec Inc.

CONN RCPT 70POS 0.05 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SFM(L) Series Datasheet

SFML-135-T2-S-D

Active

Samtec Inc.

CONN RCPT 70POS 0.05 GOLD SMD

Deep-Dive with AI

DocumentsDatasheet SFM(L) Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFML-135-T2-S-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.2 A
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height	0.185 in
Insulation Height	4.7 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	70
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

SFML-135 Series

Part	Contact Finish - Post	Material Flammability Rating	Number of Rows	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Contact Type	Fastening Type	Number of Positions Loaded	Mounting Type	Contact Finish - Mating	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Number of Positions	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Style	Contact Shape	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Features
Samtec Inc. SFML-135-01-L-D	Tin	UL94 V-0	2	Receptacle	0.12 in	3.05 mm	Solder	Female Socket	Locking Ramp	All	Through Hole	Gold	Black	10 çin	0.25 çm	3.2 A	4.57 mm	0.18 "	0.05 in	1.27 mm	70	250 VAC	0.05 in	1.27 mm	Board to Board Cable	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C
Samtec Inc. SFML-135-T2-S-D-P-TR	Tin	UL94 V-0	2	Receptacle			Solder	Female Socket	Locking Ramp	All	Surface Mount	Gold	Black	30 Áin	0.76 Ám	3.2 A	4.7 mm	0.185 in	0.05 in	1.27 mm	70	250 VAC	0.05 in	1.27 mm	Board to Board Cable	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Pick and Place
Samtec Inc. SFML-135-T2-S-D-K-TR	Tin	UL94 V-0	2	Receptacle			Solder	Female Socket	Locking Ramp	All	Surface Mount	Gold	Black	30 Áin	0.76 Ám	3.2 A	4.7 mm	0.185 in	0.05 in	1.27 mm	70	250 VAC	0.05 in	1.27 mm	Board to Board Cable	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Pick and Place
Samtec Inc. SFML-135-T2-S-D-A-TR	Tin	UL94 V-0	2	Receptacle			Solder	Female Socket	Locking Ramp	All	Surface Mount	Gold	Black	30 Áin	0.76 Ám	3.2 A	4.7 mm	0.185 in	0.05 in	1.27 mm	70	250 VAC	0.05 in	1.27 mm	Board to Board Cable	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Board Guide
Samtec Inc. SFML-135-T2-S-D	Tin	UL94 V-0	2	Receptacle			Solder	Female Socket	Locking Ramp	All	Surface Mount	Gold	Black	30 Áin	0.76 Ám	3.2 A	4.7 mm	0.185 in	0.05 in	1.27 mm	70	250 VAC	0.05 in	1.27 mm	Board to Board Cable	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C
Samtec Inc. SFML-135-T2-L-D-A	Tin	UL94 V-0	2	Receptacle			Solder	Female Socket	Locking Ramp	All	Surface Mount	Gold	Black	10 çin	0.25 çm	3.2 A	4.7 mm	0.185 in	0.05 in	1.27 mm	70	250 VAC	0.05 in	1.27 mm	Board to Board Cable	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Board Guide
Samtec Inc. SFML-135-02-L-D-A	Tin	UL94 V-0	2	Receptacle			Solder	Female Socket	Locking Ramp	All	Surface Mount	Gold	Black	10 çin	0.25 çm	3.2 A	4.7 mm	0.185 in	0.05 in	1.27 mm	70	250 VAC	0.05 in	1.27 mm	Board to Board Cable	Square	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	12	$ 12.97

Description

General part information

SFML-135 Series

70 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
