896-038-558-204
ActiveEDAC Inc.

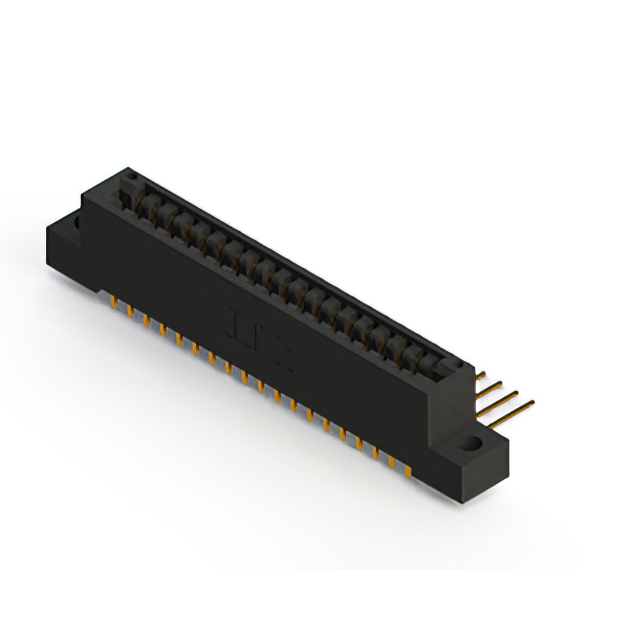

CONN EDGE DUAL FMALE 38POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
896-038-558-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 38POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 896-038-558-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 38 |
| Number of Positions/Bay/Row [custom] | 19 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
896-038 Series
...
| Part | Mounting Type | Material - Insulation | Number of Positions | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Features | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Card Type | Termination | Termination Rows | Gender | Contact Type | Number of Positions/Bay/Row [custom] | Color | Contact Finish | Flange Feature | Flange Feature | Flange Feature | Read Out | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Board Edge Straddle Mount | Polyphenylene Sulfide (PPS) | 38 | 2 | 10 Áin | 0.25 Ám | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender | 125 °C | -40 °C | Copper Alloy | Non Specified - Dual Edge | Solder | 2 | Female | Cantilever | 19 | Black | Gold | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Dual | ||
EDAC Inc. | Through Hole | Polyphenylene Sulfide (PPS) | 38 | 1 | 10 Áin | 0.25 Ám | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | Non Specified - Single Edge | Wire Wrap | 1 | Female | Cantilever | 38 | Black | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Single | |||||
EDAC Inc. | Through Hole | Polyphenylene Sulfide (PPS) | 38 | 1 | 10 Áin | 0.25 Ám | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | Non Specified - Single Edge | Solder Eyelet(s) | 1 | Female | Cantilever | 38 | Black | Gold | Flush Mount Top Opening Unthreaded | Single | 3.96 mm | 0.156 in | |||
EDAC Inc. | Through Hole | Polyphenylene Sulfide (PPS) | 38 | 1 | 10 Áin | 0.25 Ám | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | Non Specified - Single Edge | Wire Wrap | 1 | Female | Cantilever | 38 | Black | Gold | 3.25 mm | 0.128 in | Single | ||||
EDAC Inc. | Through Hole | Polyphenylene Sulfide (PPS) | 38 | 1 | 10 Áin | 0.25 Ám | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | Non Specified - Single Edge | Wire Wrap | 1 | Female | Cantilever | 38 | Black | Gold | Flush Mount M3 Threaded Insert Top Opening | Single | |||||
EDAC Inc. | Through Hole | Polyphenylene Sulfide (PPS) | 38 | 1 | 10 Áin | 0.25 Ám | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | Non Specified - Single Edge | Solder | 1 | Female | Cantilever | 38 | Black | Gold | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Single | |||
EDAC Inc. | Board Edge Straddle Mount | Polyphenylene Sulfide (PPS) | 38 | 2 | 10 Áin | 0.25 Ám | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender | 125 °C | -40 °C | Copper Alloy | Non Specified - Dual Edge | Solder | 2 | Female | Cantilever | 19 | Black | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Dual | ||||
EDAC Inc. | Through Hole Right Angle | Polyphenylene Sulfide (PPS) | 38 | 2 | 10 Áin | 0.25 Ám | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | Non Specified - Dual Edge | Solder | 2 | Female | Cantilever | 19 | Black | Gold | Flush Mount Top Opening Unthreaded | Dual | 3.96 mm | 0.156 in | |||
EDAC Inc. | Through Hole Right Angle | Polyphenylene Sulfide (PPS) | 38 | 2 | 10 Áin | 0.25 Ám | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | Non Specified - Dual Edge | Solder | 2 | Female | Cantilever | 19 | Black | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Dual | |||||
EDAC Inc. | Through Hole | Polyphenylene Sulfide (PPS) | 38 | 1 | 10 Áin | 0.25 Ám | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Copper Alloy | Non Specified - Single Edge | Solder Eyelet(s) | 1 | Female | Cantilever | 38 | Black | Gold | Floating Bobbin Flush Mount | Single | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
896-038 Series
38 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
