333-080-500-808

Active

EDAC Inc.

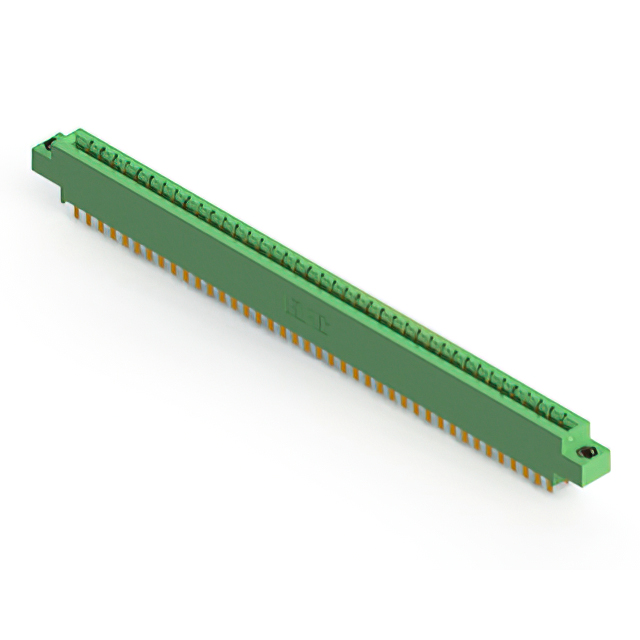

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 80 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN +1

333-080-500-808

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 80 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	333-080-500-808

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	80
Number of Positions/Bay/Row [custom]	40
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

333-080 Series

Part	Card Type	Contact Material	Color	Material - Insulation	Contact Type	Read Out	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish	Gender	Termination	Mounting Type	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Rows	Termination Rows	Flange Feature [diameter]	Flange Feature [diameter]	Features	Flange Feature	Flange Feature
EDAC Inc. 333-080-500-808	Non Specified - Dual Edge	Copper Alloy	Green	Diallyl Phthalate (DAP)	Cantilever	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	Solder Eyelet(s)	Through Hole	0.156 in	3.96 mm	-40 °C	105 ░C	4-40 Threaded Insert Top Mount Opening	40	10 Áin	0.25 Ám	80	2	2
EDAC Inc. 333-080-520-202	Non Specified - Dual Edge	Copper Alloy	Green	Polyester Thermoplastic	Cantilever	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	Solder	Through Hole	0.156 in	3.96 mm	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded	40	10 Áin	0.25 Ám	80	2	2	3.25 mm	0.128 "
EDAC Inc. 333-080-541-201	Non Specified - Dual Edge	Copper Alloy	Green	Polyester Thermoplastic	Cantilever	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	Wire Wrap	Through Hole	0.156 in	3.96 mm	-40 °C	105 ░C		40	10 Áin	0.25 Ám	80	2	2
EDAC Inc. 333-080-559-808	Non Specified - Dual Edge	Copper Alloy	Green	Polyester Thermoplastic	Cantilever	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	Wire Wrap	Through Hole Right Angle	0.156 in	3.96 mm	-40 °C	105 ░C	4-40 Threaded Insert Top Mount Opening	40	10 Áin	0.25 Ám	80	2	2
EDAC Inc. 333-080-556-201	Non Specified - Dual Edge	Copper Alloy	Green	Polyester Thermoplastic	Cantilever	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	Solder	Board Edge Straddle Mount	0.156 in	3.96 mm	-40 °C	105 ░C		40	10 Áin	0.25 Ám	80	2	2			Card Extender
EDAC Inc. 333-080-521-202	Non Specified - Dual Edge	Copper Alloy	Green	Polyester Thermoplastic	Cantilever	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	Solder	Through Hole	0.156 in	3.96 mm	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded	40	10 Áin	0.25 Ám	80	2	2	3.25 mm	0.128 "
EDAC Inc. 333-080-558-802	Non Specified - Dual Edge	Copper Alloy	Green	Polyester Thermoplastic	Cantilever	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	Wire Wrap	Through Hole Right Angle	0.156 in	3.96 mm	-40 °C	105 ░C		40	10 Áin	0.25 Ám	80	2	2				3.25 mm	0.128 in
EDAC Inc. 333-080-521-804	Non Specified - Dual Edge	Copper Alloy	Green	Polyester Thermoplastic	Cantilever	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	Solder	Through Hole	0.156 in	3.96 mm	-40 °C	105 ░C	Top Mount Opening Unthreaded	40	10 Áin	0.25 Ám	80	2	2	3.96 mm	0.156 in
EDAC Inc. 333-080-559-201	Non Specified - Dual Edge	Copper Alloy	Green	Polyester Thermoplastic	Cantilever	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	Solder	Through Hole Right Angle	0.156 in	3.96 mm	-40 °C	105 ░C		40	10 Áin	0.25 Ám	80	2	2
EDAC Inc. 333-080-556-202	Non Specified - Dual Edge	Copper Alloy	Green	Polyester Thermoplastic	Cantilever	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	Gold	Female	Solder	Board Edge Straddle Mount	0.156 in	3.96 mm	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded	40	10 Áin	0.25 Ám	80	2	2	3.25 mm	0.128 "	Card Extender

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 12.59
Newark	Each	1	$ 15.00
		100	$ 10.93
		250	$ 9.16
		500	$ 8.36
		1000	$ 7.07

Description

General part information

333-080 Series

80 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
