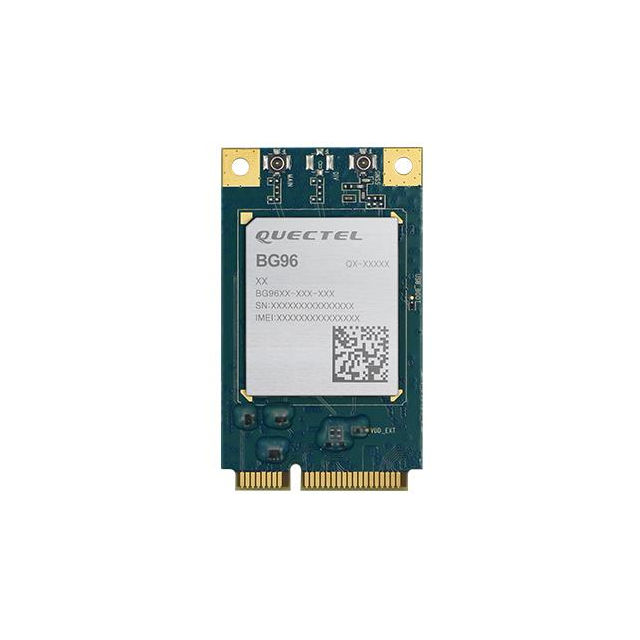

BG96MA-MINIPCIE

Active

Quectel

RF TXRX MODULE CELL SMD

Search across all available documentation for this part.

Active

Quectel

RF TXRX MODULE CELL SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cellular EDGE, GPRS, GSM, HSPA, LTE, UMTS Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

RF TXRX MODULE CELL SMD

Part	Current - Receiving	RF Family/Standard	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency	Utilized IC / Part	Mounting Type	Sensitivity	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate	Antenna Type	Protocol	Serial Interfaces	Power - Output
Quectel BG96MA-MINIPCIE	16 mA	Cellular	4.3 V	3.3 V	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	MDM9206-0	Surface Mount	-117 dBm	Module	85 °C	-40 °C	375 kbps	Antenna Not Included	EDGE, GPRS, GSM, HSPA, LTE, UMTS	ADC, GPIO, I2C, PCM, UART, USB	23 dBmW
Quectel BG96MA-MINIPCIE-S	16 mA	Cellular	4.3 V	3.3 V	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	MDM9206-0	Surface Mount	-117 dBm	Module	85 °C	-40 °C	375 kbps	Antenna Not Included	EDGE, GPRS, GSM, HSPA, LTE, UMTS	ADC, GPIO, I2C, PCM, UART, USB	23 dBmW
Quectel BG96MATEA-128-SGN	16 mA	Cellular	4.3 V	3.3 V	850 MHz, 900 MHz, 1800 MHz, 1900 MHz		Surface Mount	-117 dBm	Module	85 °C	-40 °C	375 kbps	Antenna Not Included	EDGE, GPRS, GSM, HSPA, LTE, UMTS	ADC, GPIO, I2C, PCM, UART, USB	23 dBmW
Quectel BG96MA-128-SGN	16 mA	Cellular	4.3 V	3.3 V	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	MDM9206-0	Surface Mount	-117 dBm	Module	85 °C	-40 °C	375 kbps	Antenna Not Included	EDGE, GPRS, GSM, HSPA, LTE, UMTS	ADC, GPIO, I2C, PCM, UART, USB	23 dBmW
