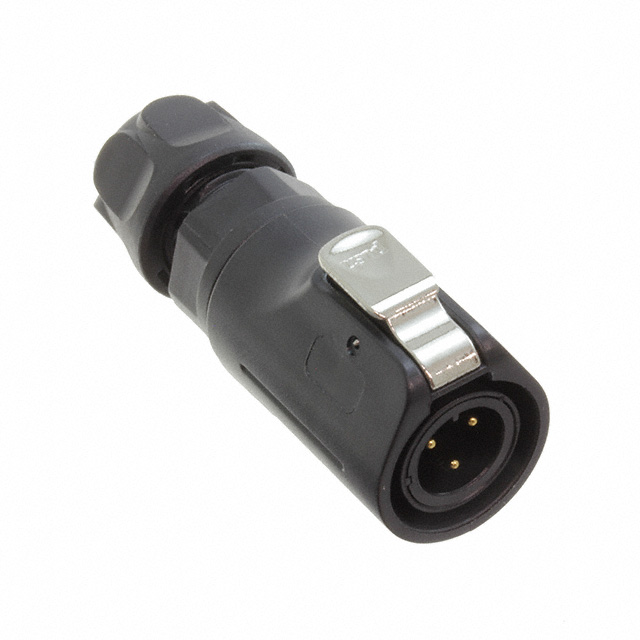

Specification	MRD-AP03-M15-000

Applications	Industrial
Backshell Material, Plating	Polybutylene Terephthalate (PBT)
Color	Black
Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Copper Alloy
Current Rating	5 A
Fastening Type	Latch Lock
Features	Backshell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	PBT, Polybutylene Terephthalate
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polybutylene Terephthalate (PBT)
Shielding	Unshielded
Termination	Solder Cup
Voltage Rating	125 V

MRD Series

Part	Mounting Feature	Contact Material	Insert Material	Ingress Protection Description	Ingress Protection IP Rating	Connector Type	Mounting Type	Current Rating	Primary Material	Orientation	Number of Positions	Contact Finish Thickness - Mating	Applications	Shell Material	Shielding	Contact Finish - Mating	Color	Termination	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Features	Fastening Type	Backshell Material, Plating	Shell Finish
Amphenol ICC (Commercial Products) MRD-BJ03-L13-000	Bulkhead Rear Side Nut	Copper Alloy	PBT Polybutylene Terephthalate	Dust Tight Waterproof	IP67	Male Pins Receptacle	Panel Mount	10 A	Plastic	Keyed	3	Flash	Industrial	Polybutylene Terephthalate (PBT)	Unshielded	Gold	Black	Solder Cup	UL94 V-0	-55 °C	105 °C	500 V	Dust Cap	Latch Lock
Amphenol ICC (Commercial Products) MRD-AH03-M15-000		Copper Alloy	PBT Polybutylene Terephthalate	Dust Tight Waterproof	IP67	Female Sockets Receptacle	Free Hanging (In-Line)	5 A	Plastic	Keyed	3	Flash	Industrial	Polybutylene Terephthalate (PBT)	Unshielded	Gold	Black	Solder Cup	UL94 V-0	-55 °C	105 °C	125 V	Backshell	Latch Lock	Polybutylene Terephthalate (PBT)
Amphenol ICC (Commercial Products) MRD-BJ03-M16-000		Copper Alloy	PBT Polybutylene Terephthalate	Dust Tight Waterproof	IP67	Male Pins Receptacle	Free Hanging (In-Line)	10 A	Plastic	Keyed	3	Flash	Industrial	Polybutylene Terephthalate (PBT)	Unshielded	Gold	Black	Solder Cup	UL94 V-0	-55 °C	105 °C	500 V	Backshell	Latch Lock	Polybutylene Terephthalate (PBT)
Amphenol ICC (Commercial Products) MRD-BG04-L13-000	Bulkhead Rear Side Nut	Copper Alloy	PBT Polybutylene Terephthalate	Dust Tight Waterproof	IP67	Male Pins Receptacle	Panel Mount	10 A	Metal	Keyed	4	Flash	Industrial	Zinc Alloy	Unshielded	Gold	Silver	Solder Cup	UL94 V-0	-55 °C	105 °C	500 V	Dust Cap	Latch Lock		Chrome
Amphenol ICC (Commercial Products) MRD-AP03-M15-000		Copper Alloy	PBT Polybutylene Terephthalate	Dust Tight Waterproof	IP67	Male Pins Plug	Free Hanging (In-Line)	5 A	Plastic	Keyed	3	Flash	Industrial	Polybutylene Terephthalate (PBT)	Unshielded	Gold	Black	Solder Cup	UL94 V-0	-55 °C	105 °C	125 V	Backshell	Latch Lock	Polybutylene Terephthalate (PBT)
Amphenol ICC (Commercial Products) MRD-BR03-M16-000		Copper Alloy	PBT Polybutylene Terephthalate	Dust Tight Waterproof	IP67	Female Sockets Plug	Free Hanging (In-Line)	10 A	Plastic	Keyed	3	Flash	Industrial	Polybutylene Terephthalate (PBT)	Unshielded	Gold	Black	Solder Cup	UL94 V-0	-55 °C	105 °C	500 V	Backshell	Latch Lock	Polybutylene Terephthalate (PBT)
