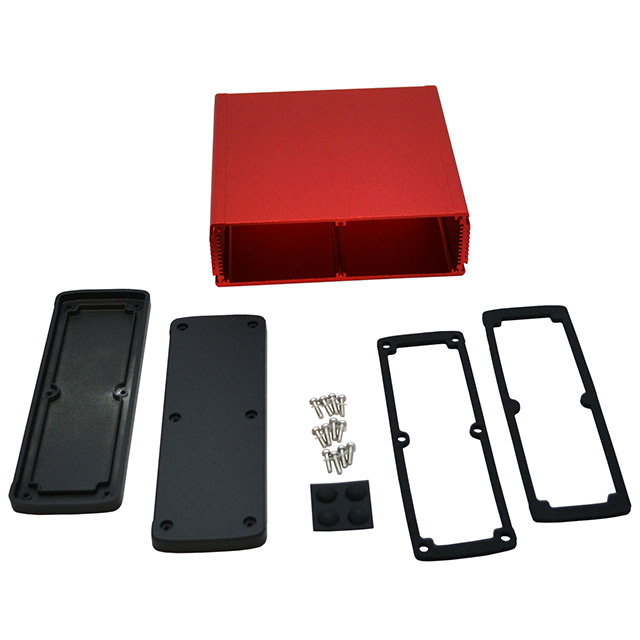

EXN-23365-RD

Active

BUD INDUSTRIES

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 61.1 MM, 169 MM, 177.7 MM, IP66

Search across all available documentation for this part.

Active

BUD INDUSTRIES

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 61.1 MM, 169 MM, 177.7 MM, IP66

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EXN-23365-RD	EXN-23365 Series

Area (L x W)	301 cm²	301 cm²
Area (L x W)	46.6 in²	46.6 in²
Color	Black, Red	Clear, Gold, Black, Red
Container Type	Box	Box
Design	End Panel(s)	End Panel(s)
Features	Card Guides, Sealing Gaskets	Card Guides, Sealing Gaskets
Height [z]	2.406 in	2.406 in
Height [z]	61.1 mm	61.1 mm
Material	Metal, Aluminum	Metal, Polycarbonate Panels, Aluminum with Plastic, Aluminum
Material Flammability Rating	-	UL94 V-0
Ratings	IP66	IP66
Size / Dimension [x]	177.69 mm	177.69 mm
Size / Dimension [x]	6.996 in	6.996 in
Size / Dimension [y]	169 mm	169 mm
Size / Dimension [y]	6.654 in	6.654 in
Thickness [z]	2.79 mm	2.79 mm
Thickness [z]	0.11 in	0.11 in
Weight	771.1 g	589.7 - 771.1 g
Weight	1.7 lbs	1.3 - 1.7 lbs

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, POLYCARBONATE, 61.1 MM, 169 MM, 177.7 MM, IP66

Part	Material Flammability Rating	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Material	Container Type	Area (L x W)	Area (L x W)	Ratings	Thickness [z]	Thickness [z]	Height [z]	Height [z]	Weight	Weight	Features	Color	Design
BUD INDUSTRIES EXN-23365-GDP	UL94 V-0	177.69 mm	6.996 in	169 mm	6.654 in	Aluminum with Plastic, Metal, Polycarbonate Panels	Box	301 cm²	46.6 in²	IP66	2.79 mm	0.11 in	2.406 in	61.1 mm	589.7 g	1.3 lbs	Card Guides, Sealing Gaskets	Clear, Gold	End Panel(s)
BUD INDUSTRIES EXN-23365-RD		177.69 mm	6.996 in	169 mm	6.654 in	Aluminum, Metal	Box	301 cm²	46.6 in²	IP66	2.79 mm	0.11 in	2.406 in	61.1 mm	771.1 g	1.7 lbs	Card Guides, Sealing Gaskets	Black, Red	End Panel(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Box Metal, Aluminum Black, Red End Panel(s) 6.996" L x 6.654" W (177.69mm x 169.00mm) X 2.406" (61.10mm)
