163A16839X

Active

Amphenol CONEC

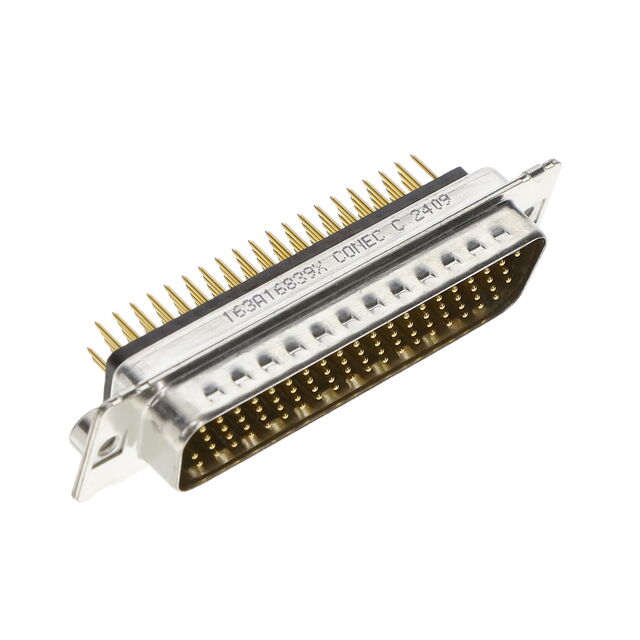

CONN D-SUB HD PLUG 78P VERT SLDR

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB HD PLUG 78P VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	163A16839X

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	78
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Termination	Solder
Voltage Rating	60 VDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Color	Termination	Voltage Rating	Contact Finish	Connector Type	Mounting Type	Current Rating (Amps)	Contact Type	Contact Material	Number of Positions	Flange Feature [custom]	Flange Feature [custom]	Dielectric Material	Material Flammability Rating	Connector Style	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Features	Flange Feature
Amphenol CONEC 163A16899X	-55 °C	125 °C	3	Black	Solder	60 VDC	Gold	Male Pins Plug	Through Hole	3 A	Signal	Copper Alloy	15	4-40	M3	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	D-Sub High Density	Flash	DE E	1	High Density	Grounding Indents
Amphenol CONEC 163A16839X	-55 °C	125 °C		Black	Solder	60 VDC	Gold	Male Pins Plug	Through Hole	3 A	Signal	Copper Alloy	78			Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	D-Sub High Density	Flash				Grounding Indents	4-40 Board Side

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

78 Position D-Sub, High Density Plug, Male Pins Connector
