Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CSD16323Q3C | CSD16323 Series |
|---|---|---|
| Current - Continuous Drain (Id) @ 25°C | 60 A, 21 A | 20 - 105 A |
| Drain to Source Voltage (Vdss) | 25 V | 25 V |
| Drive Voltage (Max Rds On, Min Rds On) | 3 V, 8 V | 3 - 8 V |
| FET Type | N-Channel | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds [Max] | 1300 pF | 1300 pF |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN |
| Power Dissipation (Max) | - | 2.8 - 74 W |
| Power Dissipation (Max) [Max] | 3 W | 3 W |
| Rds On (Max) @ Id, Vgs | 4.5 mOhm | 4.5 mOhm |
| Supplier Device Package | 8-SON-EP (3x3) | 8-VSON-CLIP (3.3x3.3), 8-SON-EP (3x3) |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Vgs (Max) | 10 V, -8 V | -8 - 10 V |
| Vgs(th) (Max) @ Id | 1.4 V | 1.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
CSD16323 Series
PROTOTYPE
| Part | Vgs (Max) | Vgs(th) (Max) @ Id | Supplier Device Package | Power Dissipation (Max) | Technology | Mounting Type | Drain to Source Voltage (Vdss) | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Drive Voltage (Max Rds On, Min Rds On) | Input Capacitance (Ciss) (Max) @ Vds [Max] | FET Type | Power Dissipation (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments CSD16323Q3T | -8 V, 10 V | 1.4 V | 8-VSON-CLIP (3.3x3.3) | 2.8 W, 74 W | MOSFET (Metal Oxide) | Surface Mount | 25 V | 8-PowerTDFN | 150 °C | -55 °C | 20 A, 105 A | 4.5 mOhm | 3 V, 8 V | 1300 pF | N-Channel | |
Texas Instruments CSD16323Q3 | -8 V, 10 V | 1.4 V | 8-VSON-CLIP (3.3x3.3) | MOSFET (Metal Oxide) | Surface Mount | 25 V | 8-PowerTDFN | 150 °C | -55 °C | 21 A, 60 A | 4.5 mOhm | 3 V, 8 V | 1300 pF | N-Channel | 3 W | |
Texas Instruments CSD16323Q3C | -8 V, 10 V | 1.4 V | 8-SON-EP (3x3) | MOSFET (Metal Oxide) | Surface Mount | 25 V | 8-PowerTDFN | 150 °C | -55 °C | 21 A, 60 A | 4.5 mOhm | 3 V, 8 V | 1300 pF | N-Channel | 3 W |
Description
General part information
CSD16323 Series

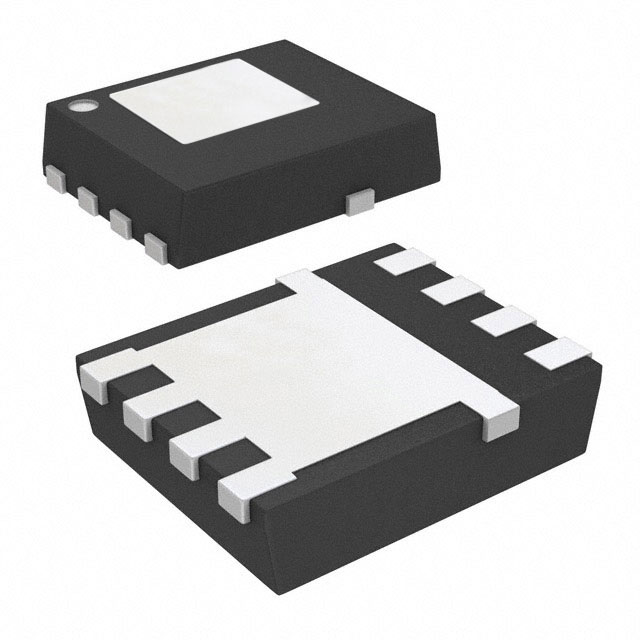

N-Channel 25 V 21A (Ta), 60A (Tc) 3W (Ta) Surface Mount 8-SON-EP (3x3)
