MAXM17631EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated

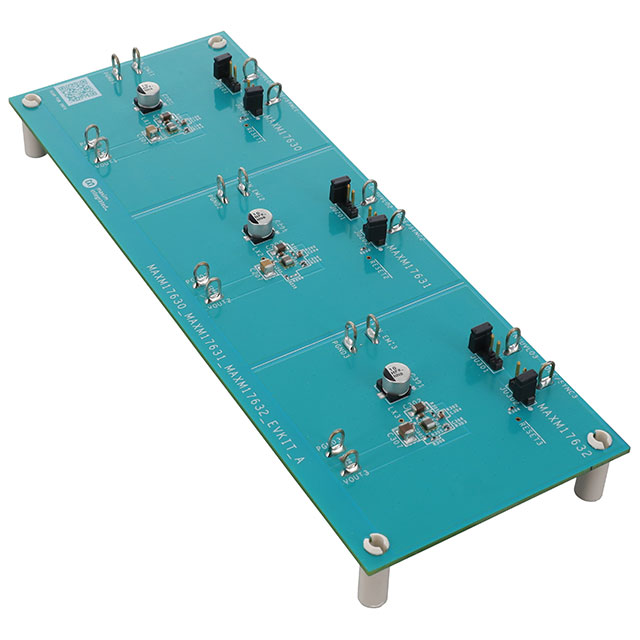

EVAL BOARD FOR MAXM17631
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAXM17631EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD FOR MAXM17631
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM17631EVKIT# | MAXM17631 Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 1 A | 1 A |
| Current - Output (Max) | - | 1 A |
| Frequency - Switching | 1.25 MHz | 1.25 MHz |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 16-SMD Module |
| Regulator Topology | Buck | Buck |
| Size / Dimension | - | 3 mm |
| Size / Dimension | - | 1.7 mm |
| Size / Dimension | - | 3 mm |
| Size / Dimension | - | 0.12 in |
| Size / Dimension | - | 0.06 " |
| Size / Dimension | - | 0.12 " |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 16-eMGA (3x3) |
| Type | - | Non-Isolated PoL Module |
| Utilized IC / Part | MAXM17631 | MAXM17631 |
| Voltage - Input (Max) | - | 36 V |
| Voltage - Input (Min) | - | 4.5 V |
| Voltage - Input [Max] | 36 V | 36 V |
| Voltage - Input [Min] | 7 V | 7 V |
| Voltage - Output | 5 V | 5 V |
| Voltage - Output 1 | - | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 40.12 | |
MAXM17631 Series
DC DC CONVERTER 5V
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Type | Applications | Number of Outputs | Package / Case | Current - Output (Max) [Max] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Mounting Type | Voltage - Input (Min) [Min] | Voltage - Output 1 | Voltage - Input (Max) [Max] | Voltage - Output | Main Purpose | Board Type | Current - Output | Regulator Topology | Frequency - Switching | Supplied Contents | Outputs and Type | Outputs and Type | Utilized IC / Part | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM17631AME+T | 125 °C | -40 °C | 16-eMGA (3x3) | Non-Isolated PoL Module | ITE (Commercial) | 1 | 16-SMD Module | 1 A | 3 mm | 1.7 mm | 3 mm | 0.12 in | 0.06 " | 0.12 " | Surface Mount | 4.5 V | 5 V | 36 V | ||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17631EVKIT# | 5 V | DC/DC, Step Down | Fully Populated | 1 A | Buck | 1.25 MHz | Board(s) | Non-Isolated | 1 | MAXM17631 | 36 V | 7 V |
Description
General part information
MAXM17631 Series
MAXM17631 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Documents
Technical documentation and resources
