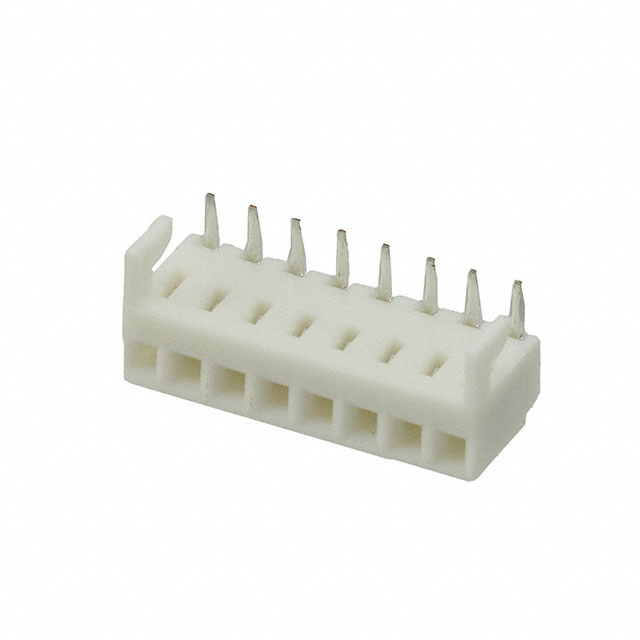

Specification	PCE-B-08

Applications	Medical, Automotive, Telecommunications, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Post	0.132 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Non-Gendered
Current Rating	2.5 A
Fastening Type	Push-Pull
Features	Board Hooks
Insulation Color	White
Insulation Height	0.185 in
Insulation Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	0 °C
Pitch - Mating	0.1 in
Style	Board, Board or Cable
Termination	Solder
Voltage Rating	250 V

PCE-B Series

Part	Number of Positions Loaded	Contact Type	Fastening Type	Number of Rows	Mounting Type	Termination	Voltage Rating	Style	Insulation Height	Contact Length - Post	Number of Positions	Operating Temperature (Max)	Insulation Color	Connector Type	Current Rating	Features	Contact Finish - Post	Pitch - Mating	Contact Finish - Mating	Material Flammability Rating	Contact Material	Contact Shape	Applications	Insulation Material
Adam Tech PCE-B-08	All	Non-Gendered	Push-Pull	1	Board Edge Right Angle Through Hole	Solder	250 V	Board Board or Cable	0.185 in	0.132 in	8	75 °C	White	Receptacle	2.5 A	Board Hooks	Tin	0.1 in	Tin	UL94 V-0	Phosphor Bronze	Square	Automotive General Purpose Medical Telecommunications	Nylon Polyamide (PA)
Adam Tech PCE-B-06	All	Non-Gendered	Push-Pull	1	Board Edge Right Angle Through Hole	Solder	250 V	Board Board or Cable	0.185 in	0.132 in	6	75 °C	White	Receptacle	2.5 A	Board Hooks	Tin	0.1 in	Tin	UL94 V-0	Phosphor Bronze	Square	Automotive General Purpose Medical Telecommunications	Nylon Polyamide (PA)
Adam Tech PCE-B-02	All	Non-Gendered	Push-Pull	1	Board Edge Right Angle Through Hole	Solder	250 V	Board Board or Cable	0.185 in	0.132 in	2	75 °C	White	Receptacle	2.5 A	Board Hooks	Tin	0.1 in	Tin	UL94 V-0	Phosphor Bronze	Square	Automotive General Purpose Medical Telecommunications	Nylon Polyamide (PA)
Adam Tech PCE-B-03	All	Non-Gendered	Push-Pull	1	Board Edge Right Angle Through Hole	Solder	250 V	Board Board or Cable	0.185 in	0.132 in	3	75 °C	White	Receptacle	2.5 A	Board Hooks	Tin	0.1 in	Tin	UL94 V-0	Phosphor Bronze	Square	Automotive General Purpose Medical Telecommunications	Nylon Polyamide (PA)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

PCE-B-08 | Datasheet
