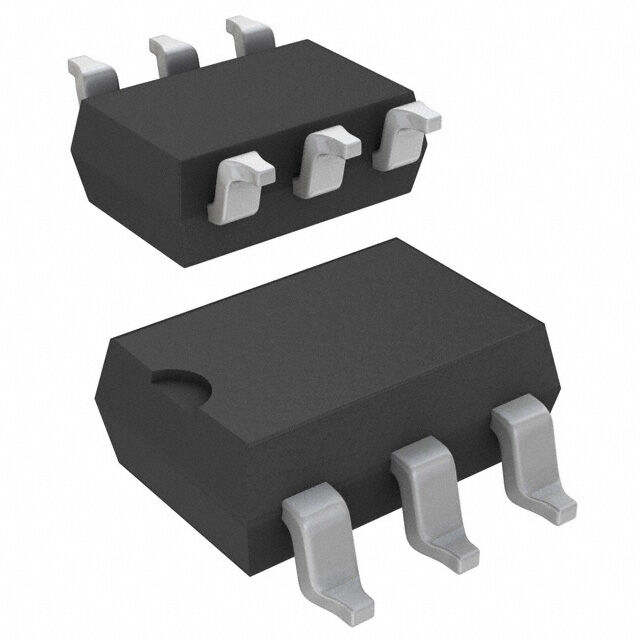

VOT8123AB-V

Active

Vishay Semiconductor Opto Division

OPTOCOUPLER PHOTOTRIAC 800V SMD6

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VOT8123AB-V

Active

Vishay Semiconductor Opto Division

OPTOCOUPLER PHOTOTRIAC 800V SMD6

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.14
		50	$ 0.72
		100	$ 0.53
		500	$ 0.49
		1000	$ 0.40
		2000	$ 0.38
		5000	$ 0.38
		10000	$ 0.37
		25000	$ 0.36

Description

General part information

VOT8123 Series

Optoisolator Triac Output 5000Vrms 1 Channel 6-SMD

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VOT8123AB-V	VOT8123 Series

Approval Agency	VDE, CQC, cUL, UL	VDE, CQC, cUL, UL
Current - DC Forward (If) (Max)	50 mA	50 mA
Current - Hold (Ih)	400 µA	400 µA
Current - LED Trigger (Ift) (Max) [Max]	10 mA	10 mA
Current - On State (It (RMS)) (Max)	100 mA	100 mA
Mounting Type	Surface Mount	Surface Mount, Through Hole
Number of Channels	1	1
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	Triac	Triac
Package / Case	6-SMD, Gull Wing	6-SMD, Gull Wing, 6-DIP
Package / Case	-	10.16 mm
Package / Case	-	7.62 - 10.16 mm
Package / Case	-	0.3 in
Static dV/dt (Min) [Min]	1 kV/µs	1 kV/µs
Supplier Device Package	6-SMD	6-SMD, 6-DIP
Voltage - Off State	800 V	800 V
Zero Crossing Circuit	False	False

VOT8123 Series

NZC, 800V, DIP6, 6PIN OPTOTRIAC,

Part	Package / Case	Mounting Type	Static dV/dt (Min) [Min]	Current - DC Forward (If) (Max)	Current - LED Trigger (Ift) (Max) [Max]	Current - On State (It (RMS)) (Max)	Voltage - Off State	Supplier Device Package	Current - Hold (Ih)	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Number of Channels	Output Type	Package / Case	Package / Case	Package / Case
Vishay Semiconductor Opto Division VOT8123AB-VT	6-SMD, Gull Wing	Surface Mount	1 kV/µs	50 mA	10 mA	100 mA	800 V	6-SMD	400 µA	-40 °C	110 °C	CQC, cUL, UL, VDE	1	Triac
Vishay Semiconductor Opto Division VOT8123AB-VT2	6-SMD, Gull Wing	Surface Mount	1 kV/µs	50 mA	10 mA	100 mA	800 V	6-SMD	400 µA	-40 °C	110 °C	CQC, cUL, UL, VDE	1	Triac
Vishay Semiconductor Opto Division VOT8123AB-T2	6-SMD, Gull Wing	Surface Mount	1 kV/µs	50 mA	10 mA	100 mA	800 V	6-SMD	400 µA	-40 °C	110 °C	CQC, cUL, UL, VDE	1	Triac
Vishay Semiconductor Opto Division VOT8123AG	6-DIP	Through Hole	1 kV/µs	50 mA	10 mA	100 mA	800 V	6-DIP	400 µA	-40 °C	110 °C	CQC, cUL, UL, VDE	1	Triac	10.16 mm	10.16 mm
Vishay Semiconductor Opto Division VOT8123AG-V	6-DIP	Through Hole	1 kV/µs	50 mA	10 mA	100 mA	800 V	6-DIP	400 µA	-40 °C	110 °C	CQC, cUL, UL, VDE	1	Triac	10.16 mm	10.16 mm
Vishay Semiconductor Opto Division VOT8123AD-V	6-DIP	Through Hole	1 kV/µs	50 mA	10 mA	100 mA	800 V	6-DIP	400 µA	-40 °C	110 °C	CQC, cUL, UL, VDE	1	Triac		7.62 mm	0.3 in
Vishay Semiconductor Opto Division VOT8123AB	6-SMD, Gull Wing	Surface Mount	1 kV/µs	50 mA	10 mA	100 mA	800 V	6-SMD	400 µA	-40 °C	110 °C	CQC, cUL, UL, VDE	1	Triac
Vishay Semiconductor Opto Division VOT8123AD	6-DIP	Through Hole	1 kV/µs	50 mA	10 mA	100 mA	800 V	6-DIP	400 µA	-40 °C	110 °C	CQC, cUL, UL, VDE	1	Triac		7.62 mm	0.3 in
Vishay Semiconductor Opto Division VOT8123AB-V	6-SMD, Gull Wing	Surface Mount	1 kV/µs	50 mA	10 mA	100 mA	800 V	6-SMD	400 µA	-40 °C	110 °C	CQC, cUL, UL, VDE	1	Triac
Vishay Semiconductor Opto Division VOT8123AB-T	6-SMD, Gull Wing	Surface Mount	1 kV/µs	50 mA	10 mA	100 mA	800 V	6-SMD	400 µA	-40 °C	110 °C	CQC, cUL, UL, VDE	1	Triac
