5502580-2
UnknownTE Connectivity AMP Connectors
CONN FIBER ST PLUG SMPLX 126UM
5502580-2
UnknownTE Connectivity AMP Connectors
CONN FIBER ST PLUG SMPLX 126UM
Description
General part information
5502580 Series

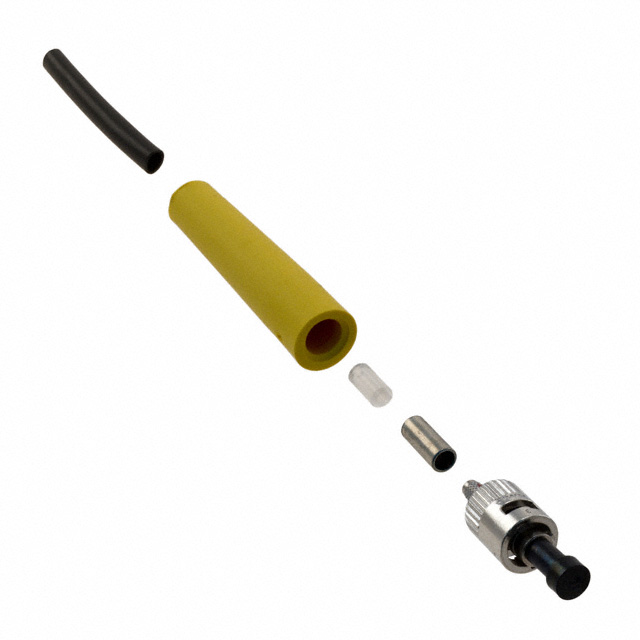

Fiber Optic Plug Connector ST Simplex 126µm Silver
Technical Specifications
Parameters and characteristics for this part
| Specification | 5502580-2 |
|---|---|
| Attenuation (Typical) | -0.3 dB |
| Body Material | Brass |
| Boot Color | Yellow |
| Cable Diameter | 2.5 mm |
| Connector Style | ST |
| Connector Type | Plug |
| Fastening Type | Bayonet Lock |
| Features | Dust Cap, Strain Relief |
| Ferrule Material | Ceramic |
| Fiber Cladding Diameter | 126 µm |
| Housing Color | Silver |
| Mating Cycles | 200 cycles |
| Mode | Singlemode |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -20 °C |
| Reflection | -40 dB |
| Simplex/Duplex | Simplex |
