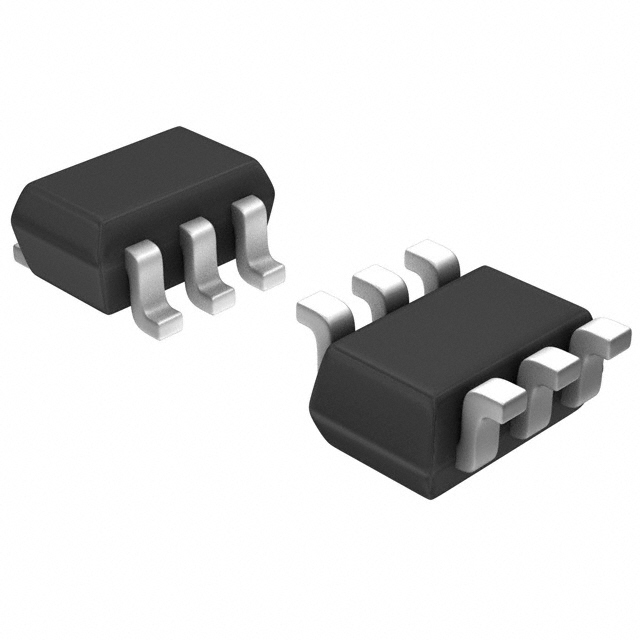

BAS 3020B E6327

Obsolete

Infineon Technologies

DIODE SCHOTTKY 30V 2A SOT363-PO

Search across all available documentation for this part.

Obsolete

Infineon Technologies

DIODE SCHOTTKY 30V 2A SOT363-PO

Technical Specifications

Parameters and characteristics for this part

Specification	BAS 3020B E6327

Capacitance @ Vr, F	70 pF
Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	200 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	6-VSSOP, SC-88, SOT-363
Speed	200 mA, 500 ns
Supplier Device Package	PG-SOT363-PO
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	600 mV

Part	Capacitance @ Vr, F	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Mounting Type	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Current - Reverse Leakage @ Vr	Speed	Supplier Device Package	Technology
Infineon Technologies BAS 3020B E6327	70 pF	2 A	600 mV	30 V	6-VSSOP SC-88 SOT-363	Surface Mount	-55 °C	125 °C	200 µA	200 mA 500 ns	PG-SOT363-PO	Schottky

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 30 V 2A Surface Mount PG-SOT363-PO
