3282-8SG-315

Active

Conxall/Switchcraft

CONN PLUG FMALE 8P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Multi-Con-X Connectors

3282-8SG-315

Active

Conxall/Switchcraft

CONN PLUG FMALE 8P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet Multi-Con-X Connectors

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.52
		10	$ 12.59
		25	$ 12.18

Description

General part information

3282-8S Series

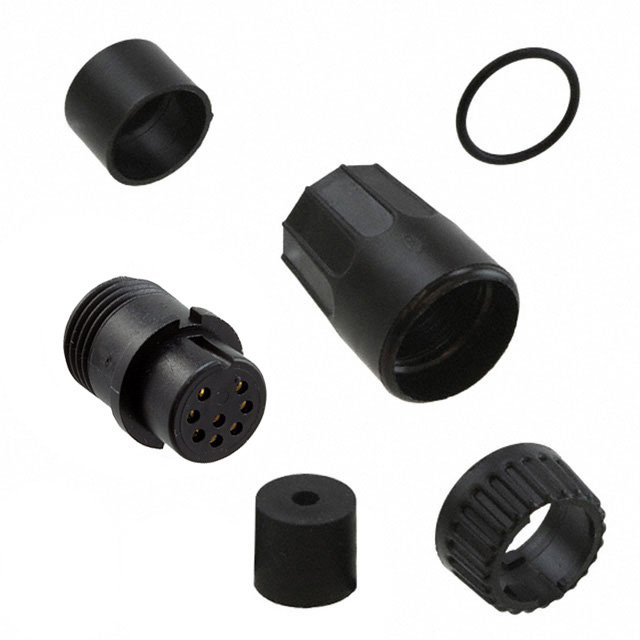

8 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Multi-Con-X Connectors

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3282-8SG-315	3282-8S Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	5.33 - 7.62 mm
Cable Opening	-	0.23 - 0.32 in
Cable Opening	-	8.13 mm
Cable Opening	-	0.21 - 0.3 in
Cable Opening	-	5.84 - 7.37 mm
Cable Opening [custom]	0.17 in, 0.15 in	0.15 - 0.17 in
Cable Opening [custom]	3.81 mm, 4.32 mm	3.81 - 4.32 mm
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	5.6 A	5.6 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell, Cable Clamp
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	8	8
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

3282-8S Series

CONN PLUG FMALE 8P GOLD SLDR CUP

Part	Color	Contact Finish - Mating	Shielding	Current Rating (Amps)	Primary Material	Backshell Material, Plating	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Features	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Number of Positions	Fastening Type	Mounting Type	Connector Type	Voltage Rating	Contact Material	Orientation	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 3282-8SG-318	Black	Gold	Unshielded	5.6 A	Plastic	Nylon, Polyamide (PA)	Weathertight	-40 °C	115 °C	Backshell	4.57 mm	0.18 in	0.2 in	5.08 mm	8	Bayonet Lock	Free Hanging (In-Line)	Female Sockets, Plug	600 V	Brass	Keyed
Conxall/Switchcraft 3282-8SG-530	Black	Gold	Unshielded	5.6 A	Plastic	Nylon, Polyamide (PA)	Weathertight	-40 °C	115 °C	Backshell, Cable Clamp					8	Bayonet Lock	Free Hanging (In-Line)	Female Sockets, Plug	600 V	Brass	Keyed	7.62 mm	0.32 in	8.13 mm	0.3 in
Conxall/Switchcraft 3282-8SG-528	Black	Gold	Unshielded	5.6 A	Plastic	Nylon, Polyamide (PA)	Weathertight	-40 °C	115 °C	Backshell, Cable Clamp					8	Bayonet Lock	Free Hanging (In-Line)	Female Sockets, Plug	600 V	Brass	Keyed	7.11 mm	0.29 in		0.28 in	7.37 mm
Conxall/Switchcraft 3282-8SG-315	Black	Gold	Unshielded	5.6 A	Plastic	Nylon, Polyamide (PA)	Weathertight	-40 °C	115 °C	Backshell					8	Bayonet Lock	Free Hanging (In-Line)	Female Sockets, Plug	600 V	Brass	Keyed						0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 3282-8SG-518	Black	Gold	Unshielded	5.6 A	Plastic	Nylon, Polyamide (PA)	Weathertight	-40 °C	115 °C	Backshell, Cable Clamp	4.57 mm	0.18 in	0.2 in	5.08 mm	8	Bayonet Lock	Free Hanging (In-Line)	Female Sockets, Plug	600 V	Brass	Keyed
Conxall/Switchcraft 3282-8SG-521	Black	Gold	Unshielded	5.6 A	Plastic	Nylon, Polyamide (PA)	Weathertight	-40 °C	115 °C	Backshell, Cable Clamp					8	Bayonet Lock	Free Hanging (In-Line)	Female Sockets, Plug	600 V	Brass	Keyed	5.33 mm	0.23 in		0.21 in	5.84 mm
