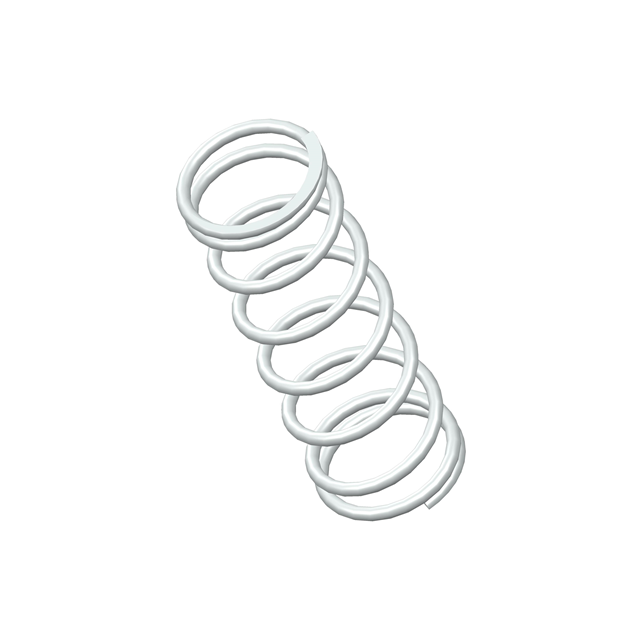

A15-45CS

Active

Century Spring Corp

COMP O= .250,L= .75,W= .023

Deep-Dive with AI

Search across all available documentation for this part.

A15-45CS

Active

Century Spring Corp

COMP O= .250,L= .75,W= .023

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

A15 Series

COMP O= .250,L= .75,W= .023

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A15-45CS	A15 Series

Diameter - Inside	-	4.93 - 5.28 mm
Diameter - Inside	-	0.456 "
Diameter - Inside [diameter]	5.18 mm	0.194 - 23.11 mm
Diameter - Inside [diameter]	0.204 in	0.044 - 0.91 in
Diameter - Outside	-	0.062 - 1.094 "
Diameter - Outside	-	9.53 mm
Diameter - Outside [diameter]	6.35 mm	1.57 - 27.79 mm
Diameter - Outside [diameter]	0.25 in	0.25 in
End Style	Ground, Closed	Ground, Closed
Finish	None	None, Gold Iridite, Zinc
Free Length	0.75 in	0.38 - 1.75 in
Free Length	19.05 mm	9.65 - 44.45 mm
Free Length	-	0.28 - 1.38 "
Free Length	-	7.11 - 35.05 mm
Load	-	6.5 lbs
Material	Stainless Steel	Stainless Steel, Spring Steel, Music Wire
Rate	4.9 lbs/in	1.2 - 126 lbs/in
Type	-	Compression
Wire Diameter	0.023 in	0.009 - 0.092 in
Wire Diameter	0.58 mm	0.032 - 2.34 mm
Wire Diameter	-	0.33 - 1.63 mm
Wire Diameter	-	0.013 - 0.067 in
Wire Diameter	-	0.81 mm

A15 Series

COMP O= .188,L= 1.75,W= .033

Part	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Rate	Free Length	Free Length	End Style	Material	Finish	Wire Diameter	Wire Diameter	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Wire Diameter [diameter]	Wire Diameter [diameter]	Type	Diameter - Outside [diameter]	Diameter - Inside [diameter]	Wire Diameter	Diameter - Outside
Century Spring Corp A15-48CS	0.122 in	3.1 mm	25 lbs/in	1.75 in	44.45 mm	Closed, Ground	Stainless Steel	None	0.84 mm	0.033 in	0.188 "	4.78 mm
Century Spring Corp A15-4CS			20 lbs/in	0.63 in	16 mm	Closed, Ground	Stainless Steel	None			0.5 in	13.97 mm	1.22 mm	0.048 in
Century Spring Corp A15-35CS			11 lbs/in	1.03 in	26.16 mm	Closed, Ground	Stainless Steel	None	1.17 mm	0.046 in	0.64 in	16.25 mm			Compression
Century Spring Corp A15-45CS	0.204 in	5.18 mm	4.9 lbs/in	0.75 in	19.05 mm	Closed, Ground	Stainless Steel	None	0.58 mm	0.023 in		6.35 mm				0.25 in
Century Spring Corp A15-44CS	0.355 in	9.02 mm	26 lbs/in			Closed, Ground	Spring Steel	None			0.437 "	11.1 mm	1.04 mm	0.041 in
Century Spring Corp A15-58CS		0.208 "	46 lbs/in	0.81 in	20.57 mm	Closed, Ground	Spring Steel	Gold Iridite			0.296 in	7.52 mm	1.12 mm	0.044 in			5.28 mm
Century Spring Corp A15-40CS	0.432 in	10.97 mm	3.7 lbs/in	0.84 in	21.34 mm	Closed, Ground	Stainless Steel	None	0.86 mm	0.034 in	0.5 in	13.97 mm
Century Spring Corp A15-2CS	0.206 in	5.23 mm	5.7 lbs/in	0.63 in	16 mm	Closed, Ground	Music Wire	None				6.35 mm	0.56 mm	0.022 in		0.25 in
Century Spring Corp A15-22CS	0.202 in	5.13 mm	12 lbs/in	0.75 in	19.05 mm	Closed, Ground	Stainless Steel	None	0.032 in		0.266 in	6.76 mm						0.81 mm
Century Spring Corp A15-3CS	0.297 in	7.54 mm	21 lbs/in	0.69 in	17.53 mm	Closed, Ground	Spring Steel	None	0.99 mm	0.039 in	0.375 in								9.53 mm
