SBR-90-R-R75-HM100

Active

Luminus Devices Inc.

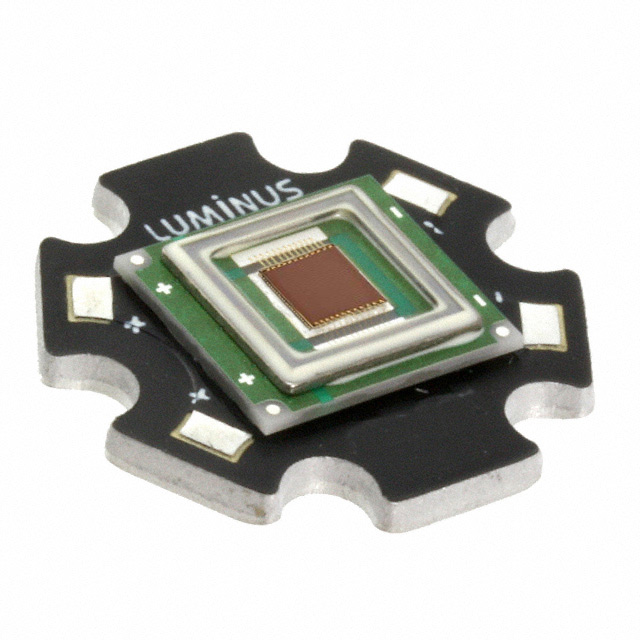

LED MOD SBR-90 RED STARBOARD

Search across all available documentation for this part.

Active

Luminus Devices Inc.

LED MOD SBR-90 RED STARBOARD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SBR-90-R-R75-HM100	SBR-90 Series

CCT (K)	-	6500 K
Color	Red	Red, Cool, White
Configuration	Starboard	Starboard
CRI (Color Rendering Index)	-	70
Current - Max [Max]	13.5 A	9 - 13.5 A
Current - Test	13.5 A	9 - 13.5 A
Height [z]	3.5 mm	3.5 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES)	-	3 mm
Light Emitting Surface (LES) [x]	3 mm	3 mm
Light Emitting Surface (LES) [y]	3 mm	3 mm
Lumens/Watt @ Current - Test	37 lm/W	24 - 56 lm/W
Luminous Flux @ Current/Temperature	1350 lm	860 - 1770 lm
Luminous Flux @ Current/Temperature	-	1710 - 1830 lm
Luminous Flux @ Current/Temperature	-	1590 - 1710 lm
Size / Dimension [diameter]	19.9 mm	19.9 mm
Temperature - Test	-	40 °C
Type	LED Module	LED Module, Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	2.7 V	2.7 - 3.5 V
Wavelength	620 nm	620 - 621 nm
Wavelength	-	615 nm
Wavelength	-	627 nm

LED MOD SBR-90 RED STARBOARD

Part	Configuration	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Lens Type	Size / Dimension [diameter]	Height [z]	Voltage - Forward (Vf) (Typ)	Color	Current - Max [Max]	Current - Test	Light Emitting Surface (LES) [y]	Light Emitting Surface (LES) [x]	Wavelength	Type	Wavelength [Min]	Wavelength [Max]	CCT (K)	Light Emitting Surface (LES) [diameter]	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Temperature - Test
Luminus Devices Inc. SBR-90-R-R75-HM100	Starboard	1350 lm	37 lm/W	Flat	19.9 mm	3.5 mm	2.7 V	Red	13.5 A	13.5 A	3 mm	3 mm	620 nm	LED Module
Luminus Devices Inc. SBR-90-R-R75-HK100	Starboard	860 lm	24 lm/W	Flat	19.9 mm	3.5 mm	2.7 V	Red	13.5 A	13.5 A	3 mm	3 mm	621 nm	LED Module	615 nm	627 nm
Luminus Devices Inc. SBR-90-W65S-R71-NB102	Starboard	1770 lm	56 lm/W	Flat	19.9 mm	3.5 mm	3.5 V	Cool, White	9 A	9 A				Chip On Board (COB)			6500 K	3 mm	70	1830 lm	1710 lm
Luminus Devices Inc. SBR-90-R-R75-HN101	Starboard	1350 lm	37 lm/W	Flat	19.9 mm	3.5 mm	2.7 V	Red	13.5 A	13.5 A	3 mm	3 mm		LED Module
Luminus Devices Inc. SBR-90-W65S-R71-NA102	Starboard	1650 lm	52 lm/W	Flat	19.9 mm	3.5 mm	3.5 V	Cool, White	9 A	9 A	3 mm	3 mm		LED Module			6500 K		70	1710 lm	1590 lm	40 °C
Luminus Devices Inc. SBR-90-R-R75-HM101	Starboard	1350 lm	37 lm/W	Flat	19.9 mm	3.5 mm	2.7 V	Red	13.5 A	13.5 A	3 mm	3 mm	620 nm	LED Module
Luminus Devices Inc. SBR-90-R-R75-HK101	Starboard	860 lm	24 lm/W	Flat	19.9 mm	3.5 mm	2.7 V	Red	13.5 A	13.5 A	3 mm	3 mm	621 nm	LED Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 56.02

General part information

LED Lighting COBs Engines Modules LED Module SBR-90 Red Starboard
