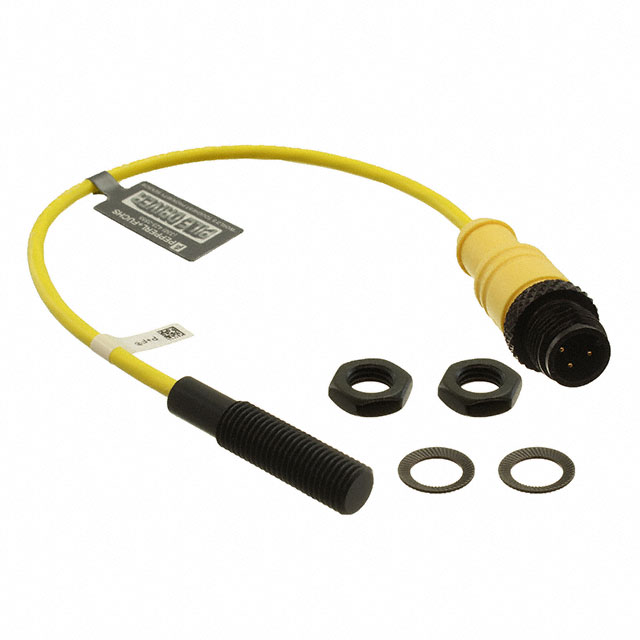

NMB1.5-8GM35-E2-C-FE-150MM-V1

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR, 1.5 MM, PNP, 10 VDC TO 30 VDC

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR, 1.5 MM, PNP, 10 VDC TO 30 VDC

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Indicator [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Ingress Protection	Material - Body	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Sensor Type	Termination Style	Sensing Distance	Sensing Distance
PEPPERL+FUCHS NMB1.5-8GM50-E2-C-FE-V1	Cylinder Threaded - M8	LED	30 VDC	10 VDC	PNP-NO 3-Wire	IP67	Stainless Steel	-25 °C	75 ░C	Unshielded	Inductive	Connector	1.5 mm	0.059 "
PEPPERL+FUCHS NMB1.5-8GM35-E2-C-FE-150MM-V1	Cylinder Threaded - M8	LED	30 VDC	10 VDC	PNP-NO 3-Wire	IP67	Stainless Steel	-25 °C	75 ░C	Unshielded	Inductive	Cable with Connector	1.5 mm	0.059 "
PEPPERL+FUCHS NMB1.5-8GM65-E2-FE-V1	Cylinder Threaded - M8	LED	30 VDC	10 VDC	PNP-NO 3-Wire	IP67	Stainless Steel	-25 °C	70 °C	Unshielded	Inductive	Connector	1.5 mm	0.059 "
PEPPERL+FUCHS NMB1.5-8GM35-E2-FE-150MM-V3	Cylinder Threaded - M8	LED	30 VDC	10 VDC	PNP-NO 3-Wire	IP67	Stainless Steel	-25 °C	70 °C	Unshielded	Inductive	Cable with Connector	1.5 mm	0.059 "
PEPPERL+FUCHS NMB1.5-8GM35-E2-C-FE-150MM-V3	Cylinder Threaded - M8	LED	30 VDC	10 VDC	PNP-NO 3-Wire	IP67	Stainless Steel	-25 °C	75 ░C	Unshielded	Inductive	Cable with Connector	1.5 mm	0.059 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE PROXIMITY SENSOR, 1.5 MM, PNP, 10 VDC TO 30 VDC
