SD1275

Obsolete

STMicroelectronics

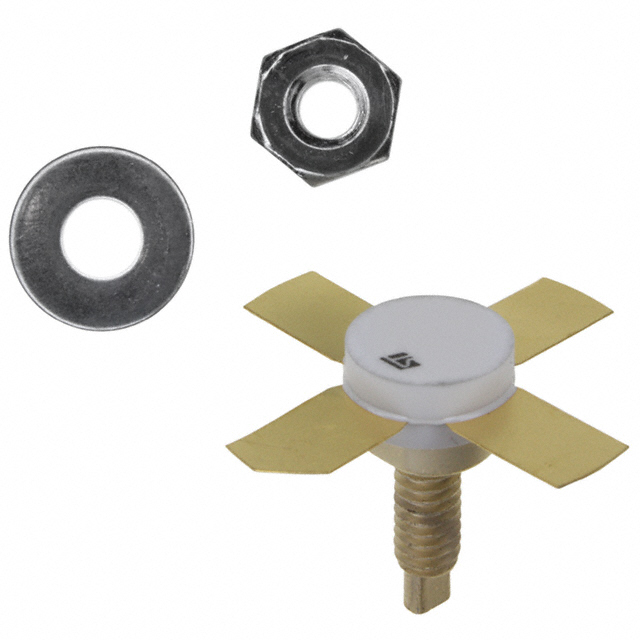

RF TRANS NPN 16V M135

Search across all available documentation for this part.

Obsolete

STMicroelectronics

RF TRANS NPN 16V M135

Technical Specifications

Parameters and characteristics for this part

Specification	SD1275

Current - Collector (Ic) (Max) [Max]	8 A
DC Current Gain (hFE) (Min) @ Ic, Vce	20 hFE
Gain	9 dBi
Mounting Type	Chassis, Stud Mount
Operating Temperature	200 °C
Package / Case	M135
Power - Max [Max]	70 W
Supplier Device Package	M135
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	16 V

Part	Mounting Type	Voltage - Collector Emitter Breakdown (Max)	Supplier Device Package	Transistor Type	Power - Max [Max]	Gain	DC Current Gain (hFE) (Min) @ Ic, Vce	Current - Collector (Ic) (Max) [Max]	Operating Temperature	Package / Case
STMicroelectronics SD1275	Chassis Stud Mount	16 V	M135	NPN	70 W	9 dBi	20 hFE	8 A	200 °C	M135

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Transistor NPN 16V 8A 70W Chassis, Stud Mount M135
