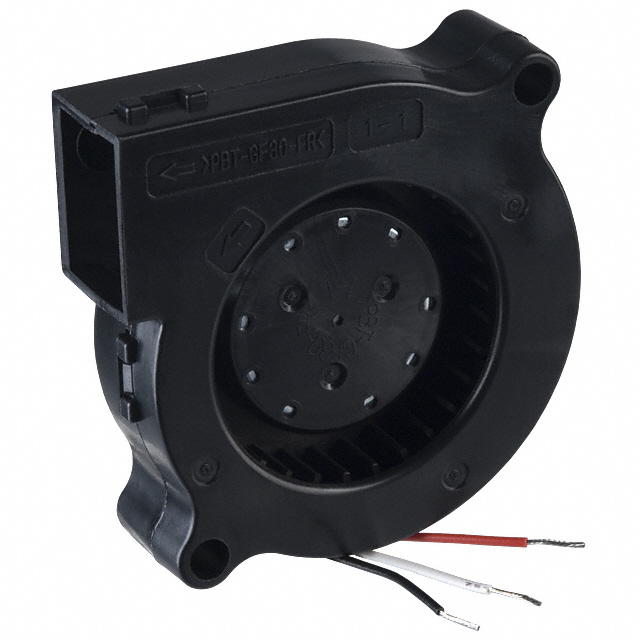

BM5115-04W-B59-L00

Obsolete

NMB TECHNOLOGIES

FAN BLOWER 51X15MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

NMB TECHNOLOGIES

FAN BLOWER 51X15MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Bearing Type	Width [x]	Current Rating (Amps)	Fan Type	Material - Blade	Material - Frame	Termination	Features	Voltage Range [Max]	Voltage Range [Min]	Approval Agency	Noise	RPM	Static Pressure	Static Pressure	Voltage - Rated	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Weight	Weight	Power (Watts)
NMB TECHNOLOGIES BM5115-04W-B59-L50	Square/Rounded	51 mm	51 mm	Ball	15 mm	0.18 A	Blower	Plastic	Plastic	3 Wire Leads	Speed Sensor (Tach)	13.8 VDC	12 VDC	CE CSA UL VDE	42 dB	5500 RPM	200 Pa	0.803 in H2O	12 VDC	0.098 mł/min	3.5 CFM	70 °C	70 °C	-10 °C	-10 °C	0.055 lb	24.95 g	2.16 W
NMB TECHNOLOGIES BM5115-04W-B39-L00	Square/Rounded	51 mm	51 mm	Ball	15 mm	60 mA	Blower	Plastic	Plastic	3 Wire Leads	Locked Rotor Sensor	13.8 VDC	12 VDC	CE CSA UL VDE	26 dB	3500 RPM	60 Pa	0.241 in H2O	12 VDC			70 °C	70 °C	-10 °C	-10 °C	0.055 lb	24.95 g	720 mW
NMB TECHNOLOGIES BM5115-04W-B59-L00	Square/Rounded	51 mm	51 mm	Ball	15 mm	0.18 A	Blower	Plastic	Plastic	3 Wire Leads	Locked Rotor Sensor	13.8 VDC	10.2 VDC	CE CSA UL VDE	42 dB	5500 RPM	200 Pa	0.803 in H2O	12 VDC	0.098 mł/min	3.5 CFM	70 °C	70 °C	-10 °C	-10 °C	0.055 lb	24.95 g	2.16 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Blower 12VDC Square/Rounded - 51mm L x 51mm H Ball 3.5 CFM (0.098mł/min) 3 Wire Leads
