PE40009

Active

Pasternack

BNC(F) BLKHD MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PE40009

Active

Pasternack

BNC(F) BLKHD MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.59
		25	$ 6.26
		50	$ 5.93
		100	$ 5.67

Description

General part information

PE4000 Series

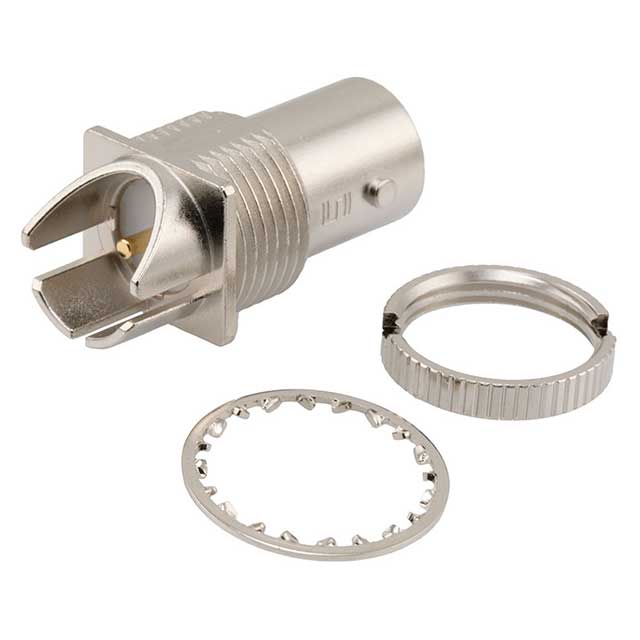

BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PE40009	PE4000 Series

Body Finish	Nickel	Nickel, Gold
Body Material	Zinc	Brass, Zinc
Cable Group	-	4855R, Belden 1855A, Belden 1694A, 4694R, RG-6
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	BNC	HD, BNC, 1.0/2.3
Connector Type	Female Socket, Jack	Male Pin, Plug, Female Socket, Jack
Contact Termination	Solder	Crimp, Solder
Dielectric Material	-	Polytetrafluoroethylene (PTFE), Polymethylpentene (PMP), Liquid Crystal Polymer (LCP)
Fastening Type	Bayonet Lock	Bayonet Lock, Snap-On
Frequency - Max [Max]	12 GHz	12 GHz
Housing Color	Silver	Silver, Gold
Impedance	75 Ohms	75 Ohms
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Free Hanging (In-Line), Through Hole, Right Angle, Panel Mount
Number of Ports	1	1
Shield Termination	Solder	Solder

PE4000 Series

HD-BNC(M) SOLDER ATTACH

Part	Contact Termination	Center Contact Material	Connector Type	Impedance	Cable Group	Frequency - Max [Max]	Shield Termination	Center Contact Plating	Fastening Type	Mounting Type	Housing Color	Body Finish	Connector Style	Dielectric Material	Body Material	Number of Ports	Mounting Feature
Pasternack PE40004	Crimp	Brass	Male Pin, Plug	75 Ohms	4855R, Belden 1855A	12 GHz	Solder	Gold	Bayonet Lock	Free Hanging (In-Line)	Silver	Nickel	BNC, HD	Polytetrafluoroethylene (PTFE)	Brass	1
Pasternack PE40001	Crimp	Brass	Male Pin, Plug	75 Ohms	4694R, Belden 1694A, RG-6	12 GHz	Solder	Gold	Bayonet Lock	Free Hanging (In-Line)	Silver	Nickel	BNC	Polytetrafluoroethylene (PTFE)	Brass	1
Pasternack PE40006	Solder	Brass	Female Socket, Jack	75 Ohms		12 GHz	Solder	Gold	Bayonet Lock	Through Hole	Silver	Nickel	BNC	Polytetrafluoroethylene (PTFE)	Brass	1
Pasternack PE40007	Solder	Brass	Female Socket, Jack	75 Ohms		12 GHz	Solder	Gold	Bayonet Lock	Panel Mount, Right Angle, Through Hole	Silver	Nickel	BNC	Polymethylpentene (PMP)	Brass	1	Bulkhead - Front Side Nut
Pasternack PE40005	Crimp	Brass	Male Pin, Plug	75 Ohms	4855R, Belden 1855A	12 GHz	Solder	Gold	Snap-On	Free Hanging (In-Line)	Gold	Gold	1.0/2.3	Polytetrafluoroethylene (PTFE)	Brass	1
Pasternack PE40002	Crimp	Brass	Male Pin, Plug	75 Ohms	4694R, Belden 1694A, RG-6	12 GHz	Solder	Gold	Bayonet Lock	Free Hanging (In-Line)	Silver	Nickel	BNC, HD	Polytetrafluoroethylene (PTFE)	Brass	1
Pasternack PE40009	Solder	Brass	Female Socket, Jack	75 Ohms		12 GHz	Solder	Gold	Bayonet Lock	Panel Mount, Through Hole	Silver	Nickel	BNC		Zinc	1	Bulkhead - Front Side Nut
Pasternack PE40008	Solder	Brass	Female Socket, Jack	75 Ohms		12 GHz	Solder	Gold	Bayonet Lock	Panel Mount, Right Angle, Through Hole	Silver		BNC	Liquid Crystal Polymer (LCP)	Zinc	1	Bulkhead - Front Side Nut
Pasternack PE40003	Crimp	Brass	Male Pin, Plug	75 Ohms	4694R, Belden 1694A, RG-6	12 GHz	Solder	Gold	Snap-On	Free Hanging (In-Line)	Silver	Nickel	1.0/2.3	Polytetrafluoroethylene (PTFE)	Brass	1
