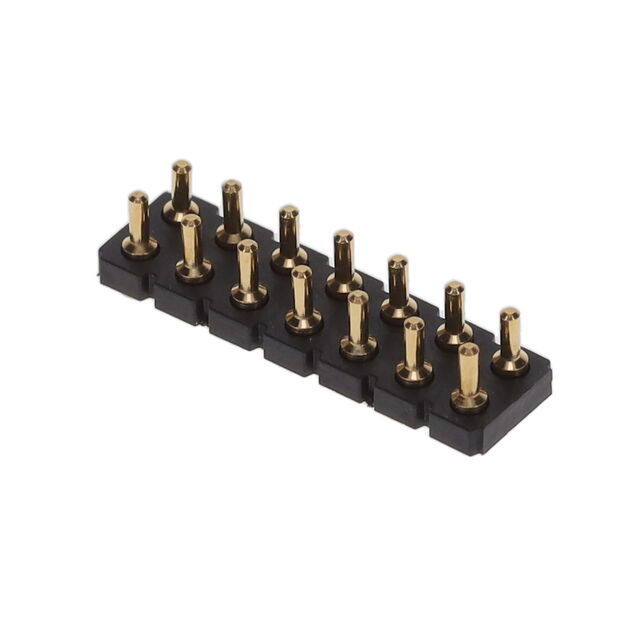

415-13-214-41-004000

Active

Mill-Max Manufacturing Corp.

STANDRD SOLDER TAIL SIP SOCKET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

415-13-214-41-004000

Active

Mill-Max Manufacturing Corp.

STANDRD SOLDER TAIL SIP SOCKET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	415-13-214-41-004000

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Post [x]	2.08 mm
Contact Length - Post [x]	0.082 "
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.05 in
Insulation Height	1.27 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	100 V, 150 VDC

415-13 Series

Part	Fastening Type	Material Flammability Rating	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Finish - Post	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Insulation Color	Contact Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Connector Type	Number of Positions	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Contact Length - Post	Contact Length - Post
Mill-Max Manufacturing Corp. 415-13-254-41-003000	Push-Pull	UL94 V-0	1.8 mm	0.071 "	All	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	Gold	2.41 mm	0.095 in	Solder	Black	Female Socket	Through Hole	-55 °C	125 °C	3 A	0.1 in	2.54 mm	Receptacle	54	2	10 çin	0.25 çm	Beryllium Copper	Circular	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 415-13-264-41-004000	Push-Pull	UL94 V-0	1.27 mm	0.05 in	All	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	Gold	2.08 mm	0.082 "	Solder	Black	Female Socket	Through Hole	-55 °C	125 °C	3 A	0.1 in	2.54 mm	Socket	64	2	10 çin	0.25 çm	Beryllium Copper	Circular	30 Áin	0.76 Ám	100 V 150 VDC
Mill-Max Manufacturing Corp. 415-13-220-41-001000	Push-Pull	UL94 V-0			All	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	Gold			Solder	Black	Female Socket	Through Hole	-55 °C	125 °C	3 A	0.1 in	2.54 mm	Receptacle	20	2	10 çin	0.25 çm	Beryllium Copper	Circular	30 Áin	0.76 Ám		0.108 in	2.75 mm
Mill-Max Manufacturing Corp. 415-13-262-41-001000	Push-Pull	UL94 V-0			All	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	Gold			Solder	Black	Female Socket	Through Hole	-55 °C	125 °C	3 A	0.1 in	2.54 mm	Receptacle	62	2	10 çin	0.25 çm	Beryllium Copper	Circular	30 Áin	0.76 Ám		0.108 in	2.75 mm
Mill-Max Manufacturing Corp. 415-13-260-41-003000	Push-Pull	UL94 V-0	1.8 mm	0.071 "	All	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	Gold	2.41 mm	0.095 in	Solder	Black	Female Socket	Through Hole	-55 °C	125 °C	3 A	0.1 in	2.54 mm	Receptacle	60	2	10 çin	0.25 çm	Beryllium Copper	Circular	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 415-13-230-41-001000	Push-Pull	UL94 V-0			All	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	Gold			Solder	Black	Female Socket	Through Hole	-55 °C	125 °C	3 A	0.1 in	2.54 mm	Receptacle	30	2	10 çin	0.25 çm	Beryllium Copper	Circular	30 Áin	0.76 Ám		0.108 in	2.75 mm
Mill-Max Manufacturing Corp. 415-13-270-41-003000	Push-Pull	UL94 V-0	1.8 mm	0.071 "	All	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	Gold	2.41 mm	0.095 in	Solder	Black	Female Socket	Through Hole	-55 °C	125 °C	3 A	0.1 in	2.54 mm	Receptacle	70	2	10 çin	0.25 çm	Beryllium Copper	Circular	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 415-13-236-41-004000	Push-Pull	UL94 V-0	1.27 mm	0.05 in	All	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	Gold	2.08 mm	0.082 "	Solder	Black	Female Socket	Through Hole	-55 °C	125 °C	3 A	0.1 in	2.54 mm	Socket	36	2	10 çin	0.25 çm	Beryllium Copper	Circular	30 Áin	0.76 Ám	100 V 150 VDC
Mill-Max Manufacturing Corp. 415-13-236-41-001000	Push-Pull	UL94 V-0			All	Gold	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	Gold			Solder	Black	Female Socket	Through Hole	-55 °C	125 °C	3 A	0.1 in	2.54 mm	Receptacle	36	2	10 çin	0.25 çm	Beryllium Copper	Circular	30 Áin	0.76 Ám		0.108 in	2.75 mm
Mill-Max Manufacturing Corp. 415-13-214-41-004000	Push-Pull	UL94 V-0	1.27 mm	0.05 in	All	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	Gold	2.08 mm	0.082 "	Solder	Black	Female Socket	Through Hole	-55 °C	125 °C	3 A	0.1 in	2.54 mm	Socket	14	2	10 çin	0.25 çm	Beryllium Copper	Circular	30 Áin	0.76 Ám	100 V 150 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 17.70
		58	$ 13.29
		116	$ 12.65
		522	$ 11.38

Description

General part information

415-13 Series

14 Position Socket Connector 0.100" (2.54mm) Through Hole Gold
