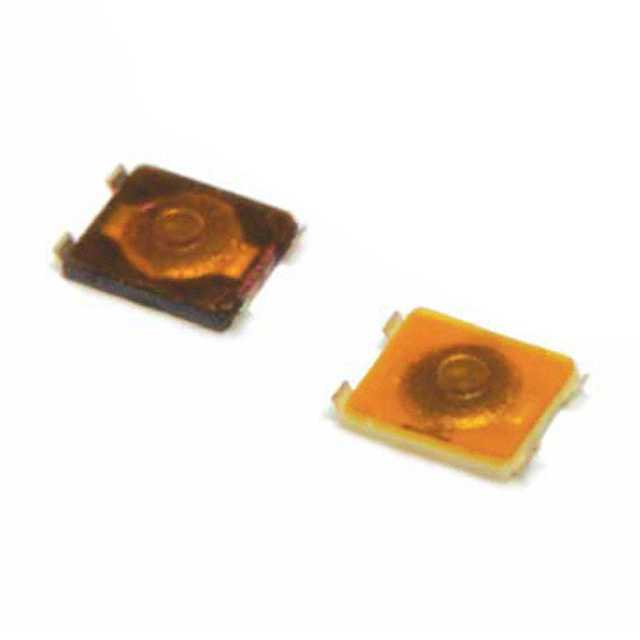

TL3700AF160QG

Obsolete

E-Switch

SWITCH TACTILE SPST-NO 0.02A 15V

Search across all available documentation for this part.

Obsolete

E-Switch

SWITCH TACTILE SPST-NO 0.02A 15V

Technical Specifications

Parameters and characteristics for this part

Specification	TL3700AF160QG

Actuator Height off PCB, Vertical [z]	0.65 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage [x]	0.02 A, 15 VDC
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	3 mm
Outline [y]	2.6 mm
Switch Function	Off-Mom
Switch Travel	0.15 mm
Termination Style	Gull Wing

Part	Circuit	Operating Force	Mounting Type	Contact Rating @ Voltage [x]	Termination Style	Illumination	Switch Function	Outline [y]	Outline [x]	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Travel	Actuator Height off PCB, Vertical [z]	Actuator Orientation	Mechanical Life
E-Switch TL3700AF100QG	SPST-NO	100 gf	Surface Mount	0.02 A 15 VDC	Gull Wing	Non-Illuminated	Off-Mom	2.6 mm	3 mm	Standard	85 °C	-40 °C	0.15 mm	0.65 mm	Top Actuated	100000 Cycles
E-Switch TL3700AF160QG	SPST-NO		Surface Mount	0.02 A 15 VDC	Gull Wing	Non-Illuminated	Off-Mom	2.6 mm	3 mm	Standard	85 °C	-40 °C	0.15 mm	0.65 mm	Top Actuated	100000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
