87221-3

Active

TE Connectivity AMP Connectors

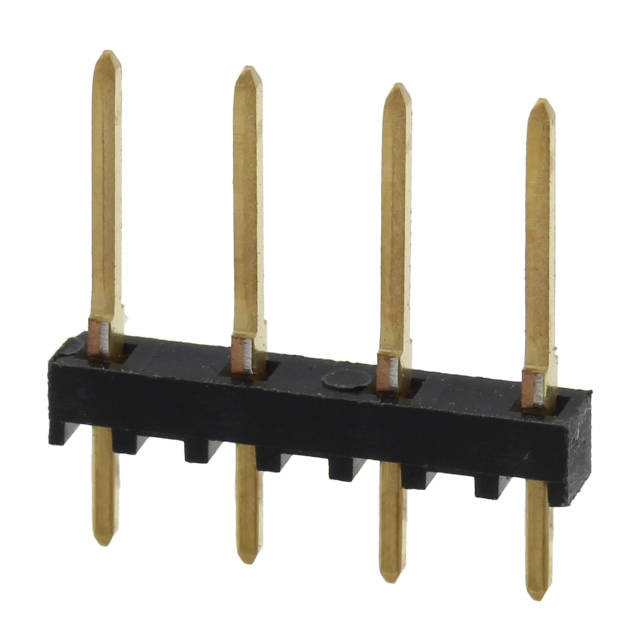

CONN HEADER VERT 4POS 3.81MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 4POS 3.81MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 4 position 0.150" (3.81mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	87221-3	87221 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating [x]	0.318 "	0.318 "
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post [x]	3.18 mm	3.18 mm
Contact Length - Post [x]	0.125 in	0.125 in
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Mounting Type	Through Hole	Through Hole
Number of Positions	4	4 - 27
Number of Positions Loaded	All	All
Number of Rows	1	1
Pitch - Mating	3.81 mm	3.81 mm
Pitch - Mating	0.15 in	0.15 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

CONN HEADER VERT 27POS 3.81MM

Part	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Termination	Pitch - Mating	Pitch - Mating	Contact Shape	Fastening Type	Contact Finish - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Shrouding	Contact Finish - Mating	Contact Type	Number of Rows	Mounting Type	Connector Type	Style	Number of Positions
TE Connectivity AMP Connectors 2-87221-6	3.18 mm	0.125 in	Black	Solder	3.81 mm	0.15 in	Circular	Push-Pull	Gold	0.318 "	8.08 mm	All	30 Áin	0.76 Ám	Flash	Unshrouded	Gold	Male Pin	1	Through Hole	Header	Board to Board, Cable	27
TE Connectivity AMP Connectors 87221-3	3.18 mm	0.125 in	Black	Solder	3.81 mm	0.15 in	Circular	Push-Pull	Gold	0.318 "	8.08 mm	All	30 Áin	0.76 Ám	Flash	Unshrouded	Gold	Male Pin	1	Through Hole	Header	Board to Board, Cable	4
TE Connectivity AMP Connectors 87221-5	3.18 mm	0.125 in	Black	Solder	3.81 mm	0.15 in	Circular	Push-Pull	Gold	0.318 "	8.08 mm	All	30 Áin	0.76 Ám	Flash	Unshrouded	Gold	Male Pin	1	Through Hole	Header	Board to Board, Cable	6
TE Connectivity AMP Connectors 87221-2	3.18 mm	0.125 in	Black	Solder	3.81 mm	0.15 in	Circular	Push-Pull	Gold	0.318 "	8.08 mm	All	30 Áin	0.76 Ám	Flash	Unshrouded	Gold	Male Pin	1	Through Hole	Header	Board to Board, Cable
