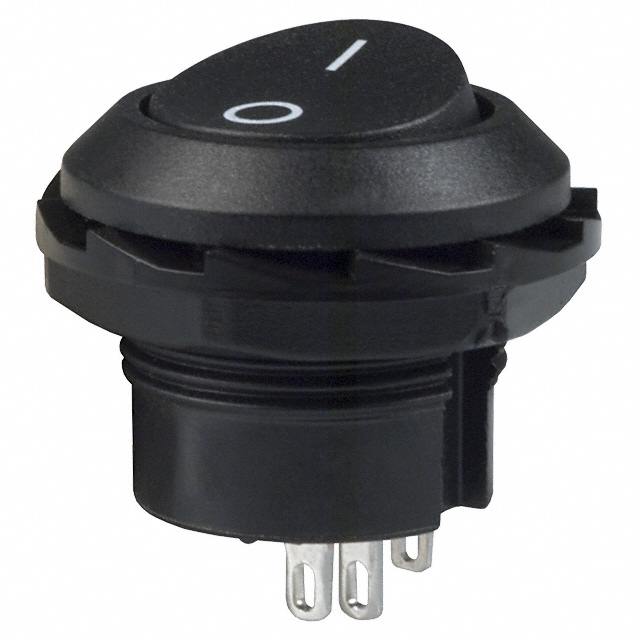

RR3130CBLKBLKFS

Active

E-Switch

ROCKER; SPDT; POS: 2; ON-ON; 6A/250VAC; BLACK; NONE; RR3130; 0÷65°C

Search across all available documentation for this part.

Active

E-Switch

ROCKER; SPDT; POS: 2; ON-ON; 6A/250VAC; BLACK; NONE; RR3130; 0÷65°C

Technical Specifications

Parameters and characteristics for this part

Specification	RR3130CBLKBLKFS

Actuator Marking	O -
Actuator Type	Round
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	10 A
Electrical Life	6000 Cycles
Mechanical Life	20000 Cycles
Mounting Type	Panel Mount, Threaded Body with Nut
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [diameter]	18.2 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Actuator Marking	Panel Cutout Dimensions [diameter]	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination Style	Electrical Life	Current Rating (Amps)	Actuator Type	Color - Actuator/Cap	Voltage Rating - AC	Circuit	Mechanical Life
E-Switch RR3130CBLKBLKES	No Marking	18.2 mm	On-On	65 °C	0 °C	Panel Mount Threaded Body with Nut	Solder Lug	6000 Cycles	10 A	Round	Black	125 V	SPDT	20000 Cycles
E-Switch RR3130CBLKBLKFS	O -	18.2 mm	On-On	65 °C	0 °C	Panel Mount Threaded Body with Nut	Solder Lug	6000 Cycles	10 A	Round	Black	125 V	SPDT	20000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 10A (AC) 125 V Panel Mount, Threaded Body with Nut
