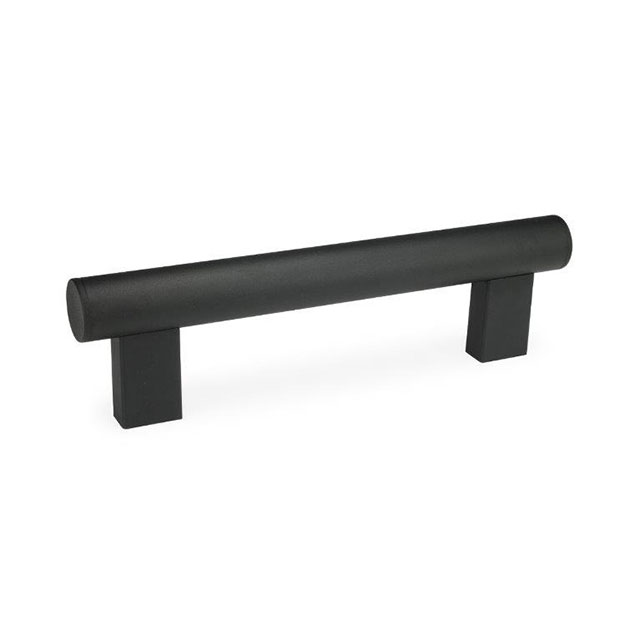

666-30-M8-300-SW

Active

J.W. Winco

HANDLE ALUMINUM MTG CTR 11.81"

Search across all available documentation for this part.

Active

J.W. Winco

HANDLE ALUMINUM MTG CTR 11.81"

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Material	Type	Thread/Screw/Hole Size	Height [z]	Height [z]	Length - Center to Center [x]	Length - Center to Center [x]	Length - Center to Center	Length - Center to Center
J.W. Winco 666-30-M8-600-WS	Screw Holes Back	Aluminum	Instrumentation	M8	59.94 mm	2.36 in
J.W. Winco 666-30-M8-250-SW	Screw Holes Back	Aluminum	Instrumentation	M8	59.94 mm	2.36 in	249.94 mm	9.84 in
J.W. Winco 666-30-M8-250-EL	Screw Holes Back	Aluminum	Instrumentation	M8	59.94 mm	2.36 in	249.94 mm	9.84 in
J.W. Winco 666-30-M8-500-EL	Screw Holes Back	Aluminum	Instrumentation	M8	59.94 mm	2.36 in	500.13 mm	19.69 in
J.W. Winco 666-30-M6-300-NG	Screw Holes Back	Stainless Steel	Instrumentation	M6	59.94 mm	2.36 in	299.97 mm	11.81 "
J.W. Winco 666-30-M8-500-SW	Screw Holes Back	Aluminum	Instrumentation	M8	59.94 mm	2.36 in	500.13 mm	19.69 in
J.W. Winco 666-30-M8-350-ELG	Screw Holes Back	Aluminum	Instrumentation	M8	59.94 mm	2.36 in			350.01 mm	13.78 in
J.W. Winco 666-30-M8-300-NG	Screw Holes Back	Stainless Steel	Instrumentation	M8	59.94 mm	2.36 in	299.97 mm	11.81 "
J.W. Winco 666-30-M6-500-NG	Screw Holes Back	Stainless Steel	Instrumentation	M6	59.94 mm	2.36 in	500.13 mm	19.69 in
J.W. Winco 666-30-M8-300-SW	Screw Holes Back	Aluminum	Instrumentation	M8	59.94 mm	2.36 in	299.97 mm	11.81 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 39.86

General part information

Instrumentation Handle Aluminum Screw Holes, Back
