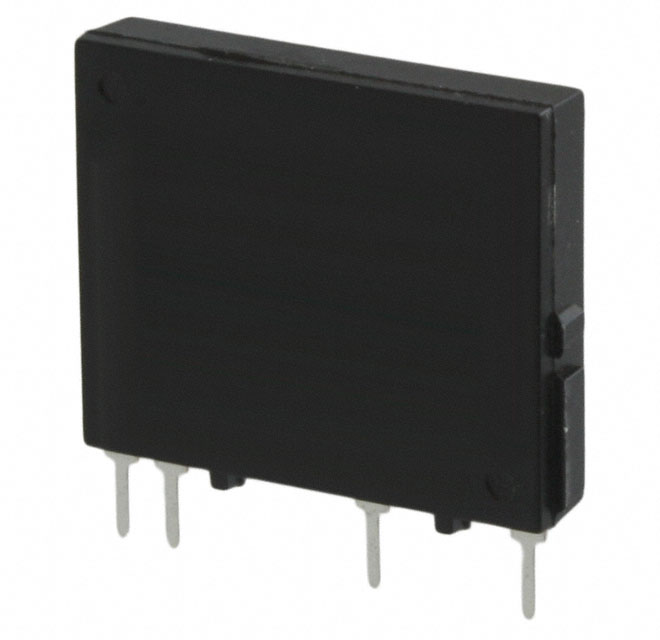

AQG12205
ActivePanasonic Electric Works
SSR RELAY SPST-NO 1A 75-264V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsHow to Read Date Codes
AQG12205
ActivePanasonic Electric Works
SSR RELAY SPST-NO 1A 75-264V
Deep-Dive with AI
DocumentsHow to Read Date Codes
Technical Specifications
Parameters and characteristics for this part
| Specification | AQG12205 |
|---|---|
| Approval Agency | cURus, VDE |
| Load Current | 1 A |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | AC |
| Package / Case | 4-SIP |
| Supplier Device Package | 4-SIP |
| Termination Style | PC Pin |
| Voltage - Input [Max] | 6 V |
| Voltage - Input [Min] | 4 V |
| Voltage - Load [Max] | 264 V |
| Voltage - Load [Min] | 75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.31 | |
| 20 | $ 4.04 | |||
| 40 | $ 3.42 | |||
| 100 | $ 3.24 | |||
| 260 | $ 2.88 | |||
| 500 | $ 2.70 | |||
| 1000 | $ 2.52 | |||
Description
General part information
AQG122 Series
Solid State SPST-NO (1 Form A) 4-SIP
Documents
Technical documentation and resources
