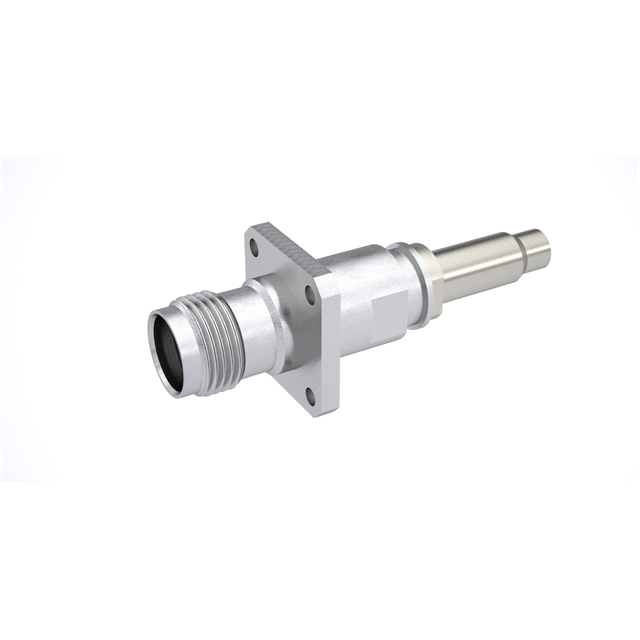

R143288111

Active

Radiall USA, Inc.

TNC / STRAIGHT SQUARE FLANGE JAC

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TNC / STRAIGHT SQUARE FLANGE JAC

Technical Specifications

Parameters and characteristics for this part

Specification	R143288111

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Shield Termination	Voltage Rating	Impedance	Housing Color	Dielectric Material	Center Contact Plating	Center Contact Material	Frequency - Max [Max]	Mating Cycles	Mounting Feature	Connector Type	Connector Style	Contact Termination	Body Material	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]
Radiall USA, Inc. R143288111	Crimp	500 V	50 Ohms	Silver	Polytetrafluoroethylene (PTFE)	Gold	Beryllium Copper	11 GHz	500	Flange	Female Socket Jack	TNC	Crimp	Stainless Steel	1	-65 ░C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 769.08

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
