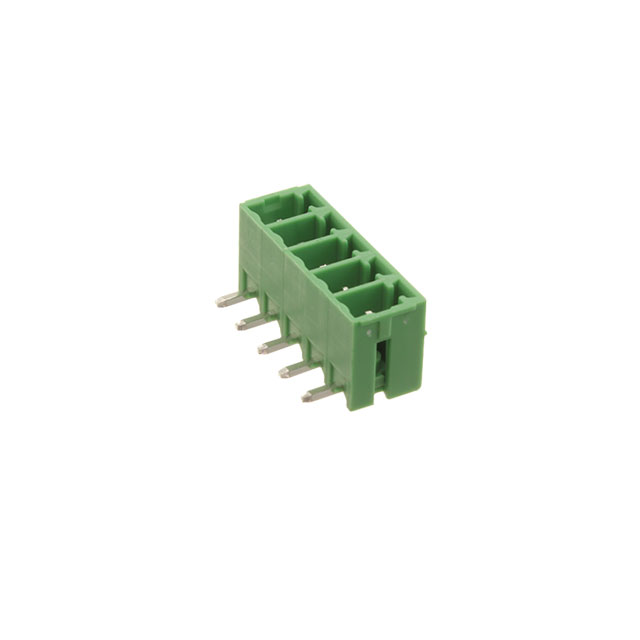

EBSA-05-B

Active

Adam Tech

CONN SHROUDED HEADER (4 SIDES) HDR 5 POS 3.81MM SOLDER RA SIDE ENTRY THRU-HOLE

Search across all available documentation for this part.

Active

Adam Tech

CONN SHROUDED HEADER (4 SIDES) HDR 5 POS 3.81MM SOLDER RA SIDE ENTRY THRU-HOLE

Technical Specifications

Parameters and characteristics for this part

Specification	EBSA-05-B

Color	Green
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Current - UL	8 A
Header Orientation	90°, Right Angle
Insulation Height [z]	7 mm
Insulation Height [z]	0.276 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	5
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

Part	Contact Material	Voltage - UL	Current - UL	Type	Material Flammability Rating	Contact Mating Finish	Mounting Type	Header Orientation	Color	Number of Levels	Pitch [x]	Pitch [x]	Insulation Height [z]	Insulation Height [z]	Positions Per Level	Termination Style	Contact Tail Length	Contact Tail Length	Operating Temperature [Min]	Operating Temperature [Max]
Adam Tech EBSA-05-B	Brass	300 V	8 A	Header Male Pins Shrouded (4 Side)	UL94 V-0	Tin	Through Hole	90° Right Angle	Green	1	0.15 in	3.81 mm	7 mm	0.276 in	5	Solder	3.5 mm	0.138 in	-40 °C	105 ░C
Adam Tech EBSA-03-A	Brass	300 V	8 A	Header Male Pins Shrouded (4 Side)	UL94 V-0	Tin	Through Hole	90° Right Angle	Green	1	0.138 in	3.5 mm	7 mm	0.276 in	3	Solder	3.5 mm	0.138 in	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole
