General part information

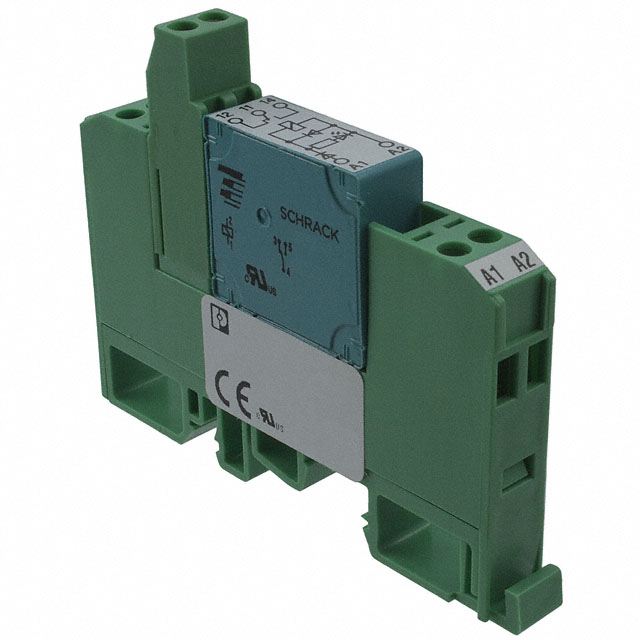

General Purpose Relay SPDT (1 Form C) DIN Rail
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 2940090 | 29400 Series |
|---|---|---|
| Approval Agency | - | EAC, cURus, UR |
| Coil Current | 21 mA | 21 mA |
| Coil Resistance | 1143 Ohms | 1.14 - 1143 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VDC | 24 VDC |
| Contact Form | SPDT (1 Form C) | SPST-NO (1 Form A), SPDT (1 Form C) |
| Contact Material | Silver Palladium (AgPd), Gold (Au) | Silver Palladium (AgPd), Gold (Au) |
| Contact Rating (Current) | 50 mA | 50 mA |
| Features | Lighted Indicator, Socket Included | Lighted Indicator, Socket Included |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 7 ms | 7 ms |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 11 ms | 11 ms |
| Switching Voltage | 36 VDC, 30 VAC | 30 - 36 VDC |
| Termination Style | Screw Terminal | Screw Terminal |
RELAY GEN PURPOSE SPST 50MA 24V
| Part | Switching Voltage | Relay Type | Operate Time | Mounting Type | Coil Type | Approval Agency | Contact Rating (Current) | Coil Current | Coil Resistance | Release Time | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Features | Termination Style | Contact Form | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2940087 | 30 VAC, 36 VDC | General Purpose | 7 ms | DIN Rail | Non Latching | cURus, EAC, UR | 50 mA | 21 mA | 1.14 kOhms | 11 ms | Gold (Au), Silver Palladium (AgPd) | -20 C | 40 °C | Lighted Indicator, Socket Included | Screw Terminal | SPST-NO (1 Form A) | 24 VDC |
Phoenix Contact 2940090 | 30 VAC, 36 VDC | General Purpose | 7 ms | DIN Rail | Non Latching | 50 mA | 21 mA | 1143 Ohms | 11 ms | Gold (Au), Silver Palladium (AgPd) | -20 C | 40 °C | Lighted Indicator, Socket Included | Screw Terminal | SPDT (1 Form C) | 24 VDC |
