2940087

Active

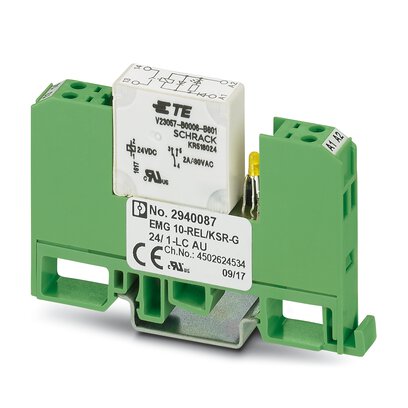

Phoenix Contact

RELAY GEN PURPOSE SPST 50MA 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPST 50MA 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2940087	29400 Series

Approval Agency	EAC, cURus, UR	EAC, cURus, UR
Coil Current	21 mA	21 mA
Coil Resistance	1.14 kOhms	1.14 - 1143 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	24 VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A), SPDT (1 Form C)
Contact Material	Silver Palladium (AgPd), Gold (Au)	Silver Palladium (AgPd), Gold (Au)
Contact Rating (Current)	50 mA	50 mA
Features	Lighted Indicator, Socket Included	Lighted Indicator, Socket Included
Mounting Type	DIN Rail	DIN Rail
Operate Time	7 ms	7 ms
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-20 C	-20 C
Relay Type	General Purpose	General Purpose
Release Time	11 ms	11 ms
Switching Voltage	36 VDC, 30 VAC	30 - 36 VDC
Termination Style	Screw Terminal	Screw Terminal

RELAY GEN PURPOSE SPST 50MA 24V

Part	Switching Voltage	Relay Type	Operate Time	Mounting Type	Coil Type	Approval Agency	Contact Rating (Current)	Coil Current	Coil Resistance	Release Time	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Termination Style	Contact Form	Coil Voltage
Phoenix Contact 2940087	30 VAC, 36 VDC	General Purpose	7 ms	DIN Rail	Non Latching	cURus, EAC, UR	50 mA	21 mA	1.14 kOhms	11 ms	Gold (Au), Silver Palladium (AgPd)	-20 C	40 °C	Lighted Indicator, Socket Included	Screw Terminal	SPST-NO (1 Form A)	24 VDC
Phoenix Contact 2940090	30 VAC, 36 VDC	General Purpose	7 ms	DIN Rail	Non Latching		50 mA	21 mA	1143 Ohms	11 ms	Gold (Au), Silver Palladium (AgPd)	-20 C	40 °C	Lighted Indicator, Socket Included	Screw Terminal	SPDT (1 Form C)	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (1 Form A) DIN Rail
