35RAPC4BVN4
ActiveSwitchcraft Inc.

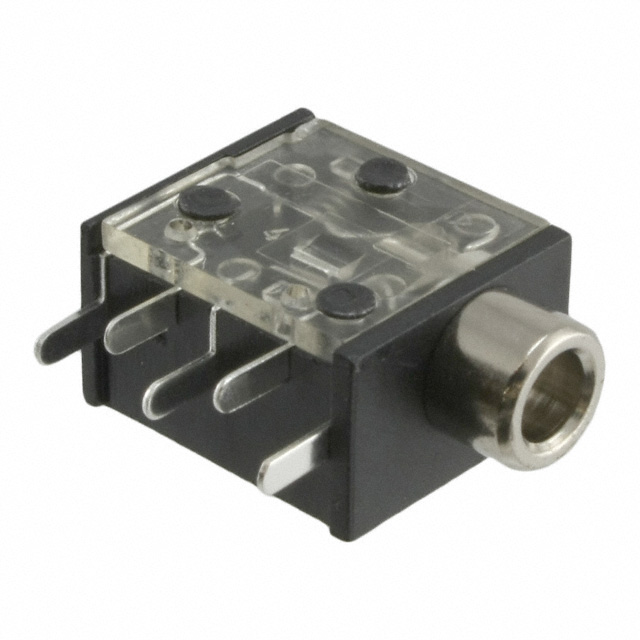

CONN JACK STEREO 3.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
35RAPC4BVN4
ActiveSwitchcraft Inc.
CONN JACK STEREO 3.5MM R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 35RAPC4BVN4 | 35RAPC Series |
|---|---|---|
| Actual Diameter [diameter] | 0.142 in | 0.142 in |
| Actual Diameter [diameter] | 3.6 mm | 3.6 mm |
| Body Color | Silver, Black | Silver, Black |
| Body Material | Brass | Brass, Copper Alloy |
| Connector Type | Phone Jack | Phone Jack, Dual |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Material - Plating [custom] | Silver | Silver |
| Features | - | Thread Lock, Mounting Hardware |
| Gender | Female | Female |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Polybutylene Terephthalate (PBT), Glass Filled, Liquid Crystal Polymer (LCP) |
| Includes | - | Connector, Washer, Nut, 1 Nut, 1 Connector |
| Industry Recognized Mating Diameter | 0.141 " | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm | 3.5 mm |
| Internal Switch(s) | Two Switches | Single Switch, Two Switches |
| Internal Switch(s) | - | False |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle, Through Hole, Right Angle, Panel Mount |
| Number of Positions/Contacts | - | 2 - 8 Conductors |
| Number of Positions/Contacts | - | 2 Sets of 3 Conductors |
| Number of Positions/Contacts [custom] | 3 | 3 |
| Number of Positions/Contacts [custom] | 5 | 3 - 5 |
| Shielding | Unshielded | Unshielded, Shielded |
| Signal Lines | Stereo | Mono, Stereo |
| Termination | Solder | Solder Eyelet(s), Solder |
| Thread Size | - | M6 |
35RAPC Series
CONN JACK MONO 3.5MM R/A
| Part | Housing Material | Body Material | Connector Type | Actual Diameter [diameter] | Actual Diameter [diameter] | Gender | Shielding | Contact Material - Plating [custom] | Mounting Type | Signal Lines | Number of Positions/Contacts | Internal Switch(s) | Contact Material | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Body Color | Termination | Features | Thread Size | Includes | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Internal Switch(s) | Number of Positions/Contacts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. 35RAPC2AVN4 | Polybutylene Terephthalate (PBT) | Brass | Phone Jack | 0.142 in | 3.6 mm | Female | Unshielded | Silver | Through Hole, Right Angle | Mono | 2 Conductors, 3 Conductors | Single Switch | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Black, Silver | Solder Eyelet(s) | |||||||
Switchcraft Inc. 35RAPC2AHN2 | Polybutylene Terephthalate (PBT) | Brass | Phone Jack | 0.142 in | 3.6 mm | Female | Unshielded | Silver | Through Hole, Right Angle | Mono | 2 Conductors, 3 Conductors | Single Switch | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Black, Silver | Solder | |||||||
Switchcraft Inc. 35RAPC2AH3 | Polybutylene Terephthalate (PBT) | Brass | Phone Jack | 0.142 in | 3.6 mm | Female | Unshielded | Silver | Panel Mount, Right Angle, Through Hole | Mono | 2 Conductors, 3 Conductors | Single Switch | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Black, Silver | Solder | Mounting Hardware, Thread Lock | M6 | Connector, Nut, Washer | ||||
Switchcraft Inc. 35RAPC4BH3 | Polybutylene Terephthalate (PBT) | Brass | Phone Jack | 0.142 in | 3.6 mm | Female | Unshielded | Silver | Panel Mount, Right Angle, Through Hole | Stereo | Two Switches | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Black, Silver | Solder | Mounting Hardware, Thread Lock | 1 Connector, 1 Nut | 3 | 5 | ||||
Switchcraft Inc. 35RAPC3BV4 | Polybutylene Terephthalate (PBT), Glass Filled | Brass | Phone Jack | 0.142 in | 3.6 mm | Female | Unshielded | Silver | Panel Mount, Right Angle, Through Hole | Stereo | Single Switch | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Black, Silver | Solder | Mounting Hardware, Thread Lock | Connector, Nut, Washer | 3 | 4 | ||||
Switchcraft Inc. 35RAPC2AV4 | Polybutylene Terephthalate (PBT) | Brass | Phone Jack | 0.142 in | 3.6 mm | Female | Unshielded | Silver | Panel Mount, Right Angle, Through Hole | Mono | 2 Conductors, 3 Conductors | Single Switch | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Black, Silver | Solder Eyelet(s) | Mounting Hardware, Thread Lock | Connector, Nut, Washer | |||||
Switchcraft Inc. 35RAPC4BVN4 | Polybutylene Terephthalate (PBT), Glass Filled | Brass | Phone Jack | 0.142 in | 3.6 mm | Female | Unshielded | Silver | Through Hole, Right Angle | Stereo | Two Switches | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Black, Silver | Solder | 3 | 5 | ||||||
Switchcraft Inc. 35RAPC4BHN3 | Polybutylene Terephthalate (PBT) | Brass | Phone Jack | 0.142 in | 3.6 mm | Female | Unshielded | Silver | Through Hole, Right Angle | Stereo | Two Switches | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Black, Silver | Solder | 3 | 5 | ||||||
Switchcraft Inc. 35RAPC3BH3 | Polybutylene Terephthalate (PBT) | Brass | Phone Jack | 0.142 in | 3.6 mm | Female | Unshielded | Silver | Panel Mount, Right Angle, Through Hole | Stereo | Single Switch | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Black, Silver | Solder | Mounting Hardware, Thread Lock | Connector, Nut, Washer | 3 | 4 | ||||
Switchcraft Inc. 35RAPC2BHN3 | Polybutylene Terephthalate (PBT) | Brass | Phone Jack | 0.142 in | 3.6 mm | Female | Unshielded | Silver | Through Hole, Right Angle | Stereo | Copper Alloy | 0.141 " | 0.125 " | 3.5 mm | Black, Silver | Solder | 3 | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.29 | |
| 10 | $ 2.08 | |||
| 25 | $ 1.97 | |||
| 50 | $ 1.92 | |||
| 100 | $ 1.83 | |||
| 250 | $ 1.61 | |||
Description
General part information
35RAPC Series
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
