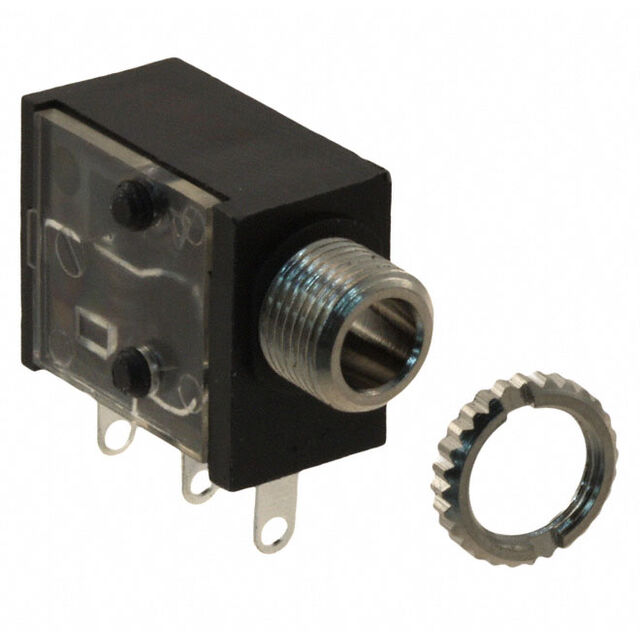

35RAPC2AV4

Active

Switchcraft Inc.

CONN JACK MONO 3.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

35RAPC2AV4

Active

Switchcraft Inc.

CONN JACK MONO 3.5MM R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	560	$ 1.90

Description

General part information

35RAPC Series

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Mono Connector Solder Eyelet(s)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	35RAPC2AV4	35RAPC Series

Actual Diameter [diameter]	0.142 in	0.142 in
Actual Diameter [diameter]	3.6 mm	3.6 mm
Body Color	Silver, Black	Silver, Black
Body Material	Brass	Brass, Copper Alloy
Connector Type	Phone Jack	Phone Jack, Dual
Contact Material	Copper Alloy	Copper Alloy
Contact Material - Plating [custom]	Silver	Silver
Features	Thread Lock, Mounting Hardware	Thread Lock, Mounting Hardware
Gender	Female	Female
Housing Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT), Polybutylene Terephthalate (PBT), Glass Filled, Liquid Crystal Polymer (LCP)
Includes	Connector, Washer, Nut	Connector, Washer, Nut, 1 Nut, 1 Connector
Industry Recognized Mating Diameter	0.141 "	0.141 "
Industry Recognized Mating Diameter	0.125 "	0.125 "
Industry Recognized Mating Diameter	3.5 mm	3.5 mm
Internal Switch(s)	Single Switch	Single Switch, Two Switches
Internal Switch(s)	-	False
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Through Hole, Right Angle, Panel Mount
Number of Positions/Contacts	3 Conductors, 2 Conductors	2 - 8 Conductors
Number of Positions/Contacts	-	3
Number of Positions/Contacts	-	3 - 5
Number of Positions/Contacts	-	2 Sets of 3 Conductors
Shielding	Unshielded	Unshielded, Shielded
Signal Lines	Mono	Mono, Stereo
Termination	Solder Eyelet(s)	Solder Eyelet(s), Solder
Thread Size	-	M6

35RAPC Series

CONN JACK MONO 3.5MM R/A

Part	Housing Material	Body Material	Connector Type	Actual Diameter [diameter]	Actual Diameter [diameter]	Gender	Shielding	Contact Material - Plating [custom]	Mounting Type	Signal Lines	Number of Positions/Contacts	Internal Switch(s)	Contact Material	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Body Color	Termination	Features	Thread Size	Includes	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]
Switchcraft Inc. 35RAPC2AVN4	Polybutylene Terephthalate (PBT)	Brass	Phone Jack	0.142 in	3.6 mm	Female	Unshielded	Silver	Through Hole, Right Angle	Mono	2 Conductors, 3 Conductors	Single Switch	Copper Alloy	0.141 "	0.125 "	3.5 mm	Black, Silver	Solder Eyelet(s)
Switchcraft Inc. 35RAPC2AHN2	Polybutylene Terephthalate (PBT)	Brass	Phone Jack	0.142 in	3.6 mm	Female	Unshielded	Silver	Through Hole, Right Angle	Mono	2 Conductors, 3 Conductors	Single Switch	Copper Alloy	0.141 "	0.125 "	3.5 mm	Black, Silver	Solder
Switchcraft Inc. 35RAPC2AH3	Polybutylene Terephthalate (PBT)	Brass	Phone Jack	0.142 in	3.6 mm	Female	Unshielded	Silver	Panel Mount, Right Angle, Through Hole	Mono	2 Conductors, 3 Conductors	Single Switch	Copper Alloy	0.141 "	0.125 "	3.5 mm	Black, Silver	Solder	Mounting Hardware, Thread Lock	M6	Connector, Nut, Washer
Switchcraft Inc. 35RAPC4BH3	Polybutylene Terephthalate (PBT)	Brass	Phone Jack	0.142 in	3.6 mm	Female	Unshielded	Silver	Panel Mount, Right Angle, Through Hole	Stereo		Two Switches	Copper Alloy	0.141 "	0.125 "	3.5 mm	Black, Silver	Solder	Mounting Hardware, Thread Lock		1 Connector, 1 Nut	3	5
Switchcraft Inc. 35RAPC3BV4	Polybutylene Terephthalate (PBT), Glass Filled	Brass	Phone Jack	0.142 in	3.6 mm	Female	Unshielded	Silver	Panel Mount, Right Angle, Through Hole	Stereo		Single Switch	Copper Alloy	0.141 "	0.125 "	3.5 mm	Black, Silver	Solder	Mounting Hardware, Thread Lock		Connector, Nut, Washer	3	4
Switchcraft Inc. 35RAPC2AV4	Polybutylene Terephthalate (PBT)	Brass	Phone Jack	0.142 in	3.6 mm	Female	Unshielded	Silver	Panel Mount, Right Angle, Through Hole	Mono	2 Conductors, 3 Conductors	Single Switch	Copper Alloy	0.141 "	0.125 "	3.5 mm	Black, Silver	Solder Eyelet(s)	Mounting Hardware, Thread Lock		Connector, Nut, Washer
Switchcraft Inc. 35RAPC4BVN4	Polybutylene Terephthalate (PBT), Glass Filled	Brass	Phone Jack	0.142 in	3.6 mm	Female	Unshielded	Silver	Through Hole, Right Angle	Stereo		Two Switches	Copper Alloy	0.141 "	0.125 "	3.5 mm	Black, Silver	Solder				3	5
Switchcraft Inc. 35RAPC4BHN3	Polybutylene Terephthalate (PBT)	Brass	Phone Jack	0.142 in	3.6 mm	Female	Unshielded	Silver	Through Hole, Right Angle	Stereo		Two Switches	Copper Alloy	0.141 "	0.125 "	3.5 mm	Black, Silver	Solder				3	5
Switchcraft Inc. 35RAPC3BH3	Polybutylene Terephthalate (PBT)	Brass	Phone Jack	0.142 in	3.6 mm	Female	Unshielded	Silver	Panel Mount, Right Angle, Through Hole	Stereo		Single Switch	Copper Alloy	0.141 "	0.125 "	3.5 mm	Black, Silver	Solder	Mounting Hardware, Thread Lock		Connector, Nut, Washer	3	4
Switchcraft Inc. 35RAPC2BHN3	Polybutylene Terephthalate (PBT)	Brass	Phone Jack	0.142 in	3.6 mm	Female	Unshielded	Silver	Through Hole, Right Angle	Stereo			Copper Alloy	0.141 "	0.125 "	3.5 mm	Black, Silver	Solder				3	3
