ENG.1B.303.CLL

Active

LEMO

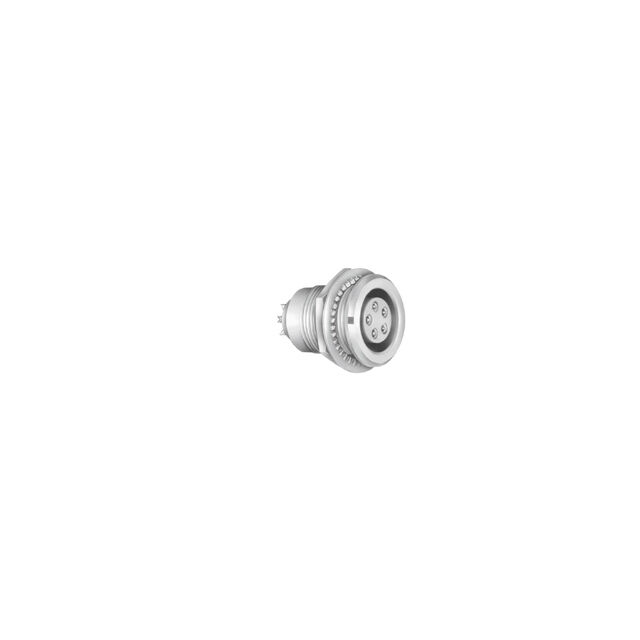

CONN RCPT FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ENG.1B.303.CLL

Active

LEMO

CONN RCPT FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ENG.1B.303.CLL	ENG.1B Series

Accessory Type	-	Earthing Crown
Color	Silver	Silver, Beige
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	12 A	1.5 - 15 A
Fastening Type	Push-Pull	Push-Pull
Features	Ground	Ground
For Use With/Related Products	-	1B Series Connector
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Positions	-	2 - 14
Number of Positions	-	16
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 - -50 °C
Orientation	G	G
Primary Material	Metal	Metal, Plastic
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	303	302 - 316
Shielding	Shielded	Shielded
Termination	-	Crimp

ENG.1B Series

CONN RCPT FMALE 5P GOLD SLDR CUP

Part	Material Flammability Rating	Insert Material	Color	Features	Contact Material	Orientation	Fastening Type	Contact Finish - Mating	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Feature	Ingress Protection	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Shell Material	Shell Finish	Shielding	Number of Positions	Termination	Accessory Type	For Use With/Related Products	Number of Positions
LEMO ENG.1B.305.CLL	UL94 V-0	Polyetheretherketone (PEEK)	Silver	Ground	Bronze	G	Push-Pull	Gold	Metal	-55 °C	250 °C	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	IP50	9 A	59 Áin	1.5 Ám	305	Brass	Chrome	Shielded
LEMO ENG.1B.302.CLL	UL94 V-0	Polyetheretherketone (PEEK)	Silver	Ground	Bronze	G	Push-Pull	Gold	Metal	-55 °C	250 °C	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	IP50	15 A	59 Áin	1.5 Ám	302	Brass	Chrome	Shielded	2
LEMO ENG.1B.307.CYM	UL94 V-0	Polyetheretherketone (PEEK)	Silver	Ground	Bronze	G	Push-Pull	Gold	Metal	-55 °C	250 °C	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	IP50	7 A	59 Áin	1.5 Ám	307	Brass	Chrome	Shielded	7	Crimp
LEMO ENG.1B.221.BA																								Earthing Crown	1B Series Connector
LEMO ENG.1B.303.CLL	UL94 V-0	Polyetheretherketone (PEEK)	Silver	Ground	Bronze	G	Push-Pull	Gold	Metal	-55 °C	250 °C	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	IP50	12 A	59 Áin	1.5 Ám	303	Brass	Chrome	Shielded
LEMO ENG.1B.307.GLL	UL94 V-0	Polyetheretherketone (PEEK)	Beige	Ground	Bronze	G	Push-Pull	Gold	Plastic	-50 °C	250 °C	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	IP50	7 A	59 Áin	1.5 Ám	307			Shielded	7
LEMO ENG.1B.304.CLL	UL94 V-0	Polyetheretherketone (PEEK)	Silver	Ground	Bronze	G	Push-Pull	Gold	Metal	-55 °C	250 °C	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	IP50	10 A	59 Áin	1.5 Ám	304	Brass	Chrome	Shielded	4
LEMO ENG.1B.304.GLL	UL94 V-0	Polyetheretherketone (PEEK)	Beige	Ground	Bronze	G	Push-Pull	Gold	Plastic	-50 °C	250 °C	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	IP50	10 A	59 Áin	1.5 Ám	304			Shielded	4
LEMO ENG.1B.316.CLL	UL94 V-0	Polyetheretherketone (PEEK)	Silver	Ground	Bronze	G	Push-Pull	Gold	Metal	-55 °C	250 °C	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	IP50	1.5 A	59 Áin	1.5 Ám	316	Brass	Chrome	Shielded					16
LEMO ENG.1B.308.CLL	UL94 V-0	Polyetheretherketone (PEEK)	Silver	Ground	Bronze	G	Push-Pull	Gold	Metal	-55 °C	250 °C	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	IP50	5 A	59 Áin	1.5 Ám	308	Brass	Chrome	Shielded	8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.48

Description

General part information

ENG.1B Series

3 Position Circular Connector Receptacle, Female Sockets Solder Cup
