IPEH-002029

Active

PEAK-SYSTEM

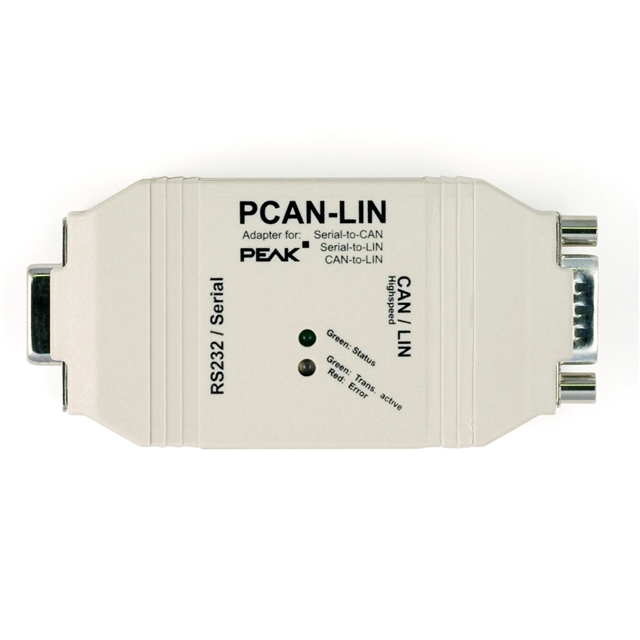

PCAN-LIN HIGH-SPEED CAN (OPTO-IS

Search across all available documentation for this part.

Active

PEAK-SYSTEM

PCAN-LIN HIGH-SPEED CAN (OPTO-IS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IPEH-002029	IPEH Series

Applications	General Purpose	General Purpose
Convert From (Adapter End)	-	USB - A 2.0 Male
Convert To (Adapter End)	-	D-Sub 09 Pos (DB9) Male, D-Sub 09 Pos (DB9) Male (6), Circular 05 Pos (M12-5) Male (6), D-Sub 09 Pos (DB9) Male (2)
Features	-	LED Indicator
Function	Gateway	Gateway
Interface	LIN, CAN, RS-232	PCI Express, CAN, LIN, RS-232
Modulation or Protocol	CAN-LIN	CAN, CAN-LIN
Number of Ports	-	1 - 4
Type	-	USB to CAN

PCAN-MINIPCIE (EXPRESS) CARD, TW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 399.00

General part information

CAN-LIN Gateway CAN, LIN, RS-232
