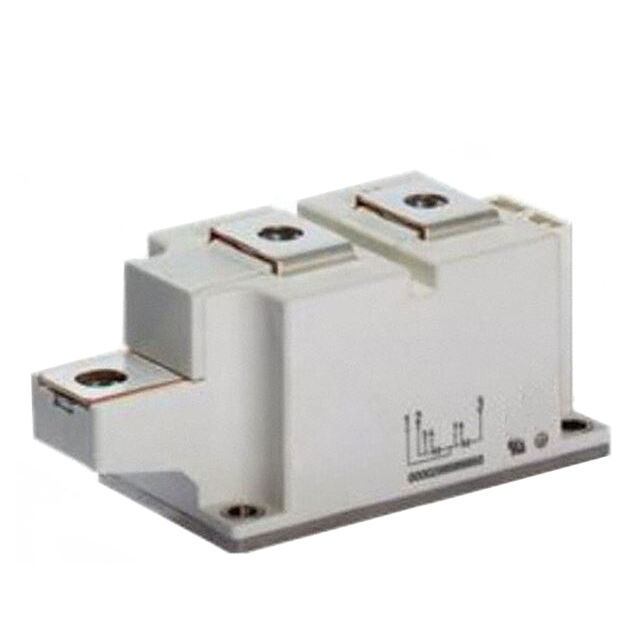

TD320N18SOFHPSA1

Active

Infineon Technologies

1800 V, 320 A ECO BLOCK 50 MM THYRISTOR / DIODE PHASE CONTROL MODULES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TD320N18SOFHPSA1

Active

Infineon Technologies

1800 V, 320 A ECO BLOCK 50 MM THYRISTOR / DIODE PHASE CONTROL MODULES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TD320N18SOFHPSA1

Current - Gate Trigger (Igt) (Max) [Max]	150 mA
Current - Hold (Ih) (Max) [Max]	150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	9500 A
Current - On State (It (AV)) (Max) [Max]	320 A
Current - On State (It (RMS)) (Max)	520 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	1
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Structure	Series Connection - SCR/Diode
Voltage - Gate Trigger (Vgt) (Max) [Max]	2 V
Voltage - Off State	1.8 kV

TD320N18 Series

Part	Voltage - Gate Trigger (Vgt) (Max) [Max]	Number of SCRs, Diodes	Structure	Current - On State (It (AV)) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - Off State	Package / Case	Current - On State (It (RMS)) (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Mounting Type
Infineon Technologies TD320N18SOFHPSA1	2 V	1	Series Connection - SCR/Diode	320 A	150 mA	150 mA	1.8 kV	Module	520 A	-40 °C	130 °C	9500 A	Chassis Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 96.53
		12	$ 79.25
Newark	Each	1	$ 100.39
		6	$ 94.40
		12	$ 88.41
		27	$ 82.42

Description

General part information

TD320N18 Series

Thyristor/Diode 50 mm Eco Block 1800 V, 320 A module for phase control insolder bond technology. If you need additional features or higher performance go topressure contact technology.
