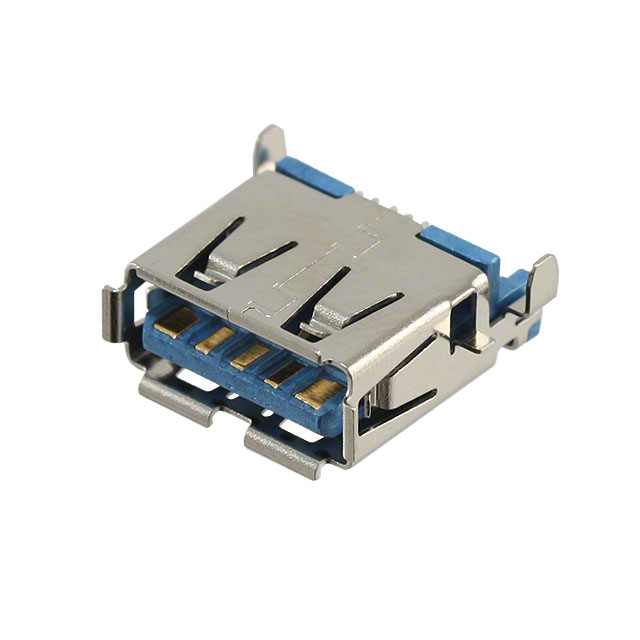

AU-Y1006-3

Active

Assmann WSW Components

CONN RCPT USB3.2 TYPA 9P SMD RA

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN RCPT USB3.2 TYPA 9P SMD RA

Technical Specifications

Parameters and characteristics for this part

Specification	AU-Y1006-3

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Current Rating (Amps)	1.8 A, 0.25 A
Features	Solder Retention
Gender	Receptacle
Insulation Color	Blue
Material Flammability Rating	UL94 V-0
Mating Cycles	5000
Mounting Feature	Horizontal
Mounting Type	Through Hole, Surface Mount, Right Angle
Number of Contacts	9
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell/Shielding Material	Brass
Termination	Solder

Part	Material Flammability Rating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Number of Contacts	Insulation Color	Current Rating (Amps)	Termination	Connector Type	Shell/Shielding Material	Mounting Feature	Features	Contact Finish	Mating Cycles	Number of Ports
Assmann WSW Components AU-Y1006-3	UL94 V-0	Surface Mount Right Angle Through Hole	85 °C	-55 °C	Receptacle	9	Blue	0.25 A 1.8 A	Solder	USB-A (USB TYPE-A)	Brass	Horizontal	Solder Retention	Gold	5000	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 9 Position Surface Mount, Right Angle; Through Hole
