Q-1V01V000R.25M

Active

Amphenol Custom Cable

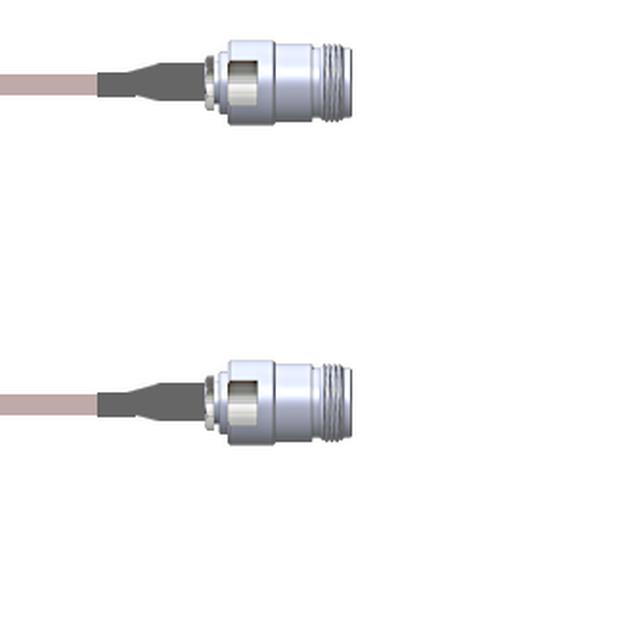

CBL ASSY NTYPE JACK-JACK 9.843"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1V01V000R.25M

Active

Amphenol Custom Cable

CBL ASSY NTYPE JACK-JACK 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1V01V000R.25M

1st Connector	N-Type Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-1V01V0 Series

Part	1st Connector	2nd Connector Mounting Type	1st Connector Mounting Type	2nd Contact Gender	Color	Overall Impedance	1st Contact Gender	Features	Length	Length	Frequency - Max [Max]	2nd Connector	Style	Cable Type	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-1V01V000R024i	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Copper	50 Ohms	Female	Shielded	24 "	609.6 mm	11 GHz	N-Type Jack	N-Type to N-Type	RG-316 DB
Amphenol Custom Cable Q-1V01V000R2.5M	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Copper	50 Ohms	Female	Shielded	98.4 in	2.5 m	11 GHz	N-Type Jack	N-Type to N-Type	RG-316 DB	8.2 '
Amphenol Custom Cable Q-1V01V000R048i	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Copper	50 Ohms	Female	Shielded	48 in	1200 mm	11 GHz	N-Type Jack	N-Type to N-Type	RG-316 DB	4 ft
Amphenol Custom Cable Q-1V01V000R1.5M	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Copper	50 Ohms	Female	Shielded	59.1 in	1.5 m	11 GHz	N-Type Jack	N-Type to N-Type	RG-316 DB	4.9 ft
Amphenol Custom Cable Q-1V01V000R072i	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Copper	50 Ohms	Female	Shielded	72 in	1.8 m	11 GHz	N-Type Jack	N-Type to N-Type	RG-316 DB	6 ft
Amphenol Custom Cable Q-1V01V000R001M	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Copper	50 Ohms	Female	Shielded	39.4 in	1 m	11 GHz	N-Type Jack	N-Type to N-Type	RG-316 DB	3.3 ft
Amphenol Custom Cable Q-1V01V000R018i	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Copper	50 Ohms	Female	Shielded			11 GHz	N-Type Jack	N-Type to N-Type	RG-316 DB		457.2 mm	457.2 mm
Amphenol Custom Cable Q-1V01V000R0.5M	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Copper	50 Ohms	Female	Shielded	19.69 "	50 cm	11 GHz	N-Type Jack	N-Type to N-Type	RG-316 DB
Amphenol Custom Cable Q-1V01V000R009i	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Copper	50 Ohms	Female	Shielded	9 "	228.6 mm	11 GHz	N-Type Jack	N-Type to N-Type	RG-316 DB
Amphenol Custom Cable Q-1V01V000R.25M	N-Type Jack	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Copper	50 Ohms	Female	Shielded			11 GHz	N-Type Jack	N-Type to N-Type	RG-316 DB			250 mm	9.843 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 220.01
		25	$ 219.49
		50	$ 218.97
		100	$ 218.45
		250	$ 217.93

Description

General part information

Q-1V01V0 Series

Cable Assembly Coaxial N-Type to N-Type RG-316 DB 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
