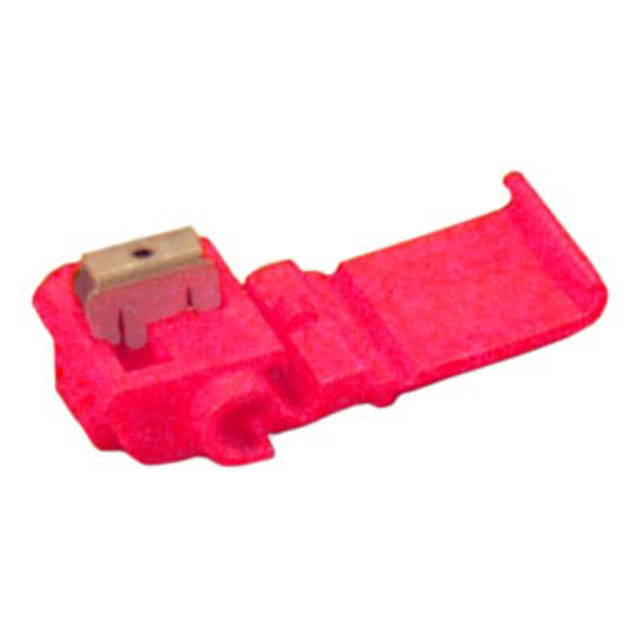

557-BULK

Active

3M (TC)

3M SCOTCHLOK ELECTRICAL IDC 557-BULK, PIGTAIL, SELF-STRIPPING, MOISTURE RESISTANT AND FLAME RETARDANT, RED, 22-16 AWG, 500 PER C

Search across all available documentation for this part.

Active

3M (TC)

3M SCOTCHLOK ELECTRICAL IDC 557-BULK, PIGTAIL, SELF-STRIPPING, MOISTURE RESISTANT AND FLAME RETARDANT, RED, 22-16 AWG, 500 PER C

Technical Specifications

Parameters and characteristics for this part

Specification	557-BULK

Color	Red
Features	Hinged Lid(s), Flame Retardant
Insulation	Fully Insulated
Number of Wire Entries	2
Terminal Type	Individual Openings, Closed End, Butt Splice
Termination	IDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	16 AWG

Part	Color	Terminal Type	Features	Wire Gauge [Max]	Wire Gauge [Min]	Number of Wire Entries	Insulation	Termination
3M (TC) 557-BULK	Red	Butt Splice Closed End Individual Openings	Flame Retardant Hinged Lid(s)	22 AWG	16 AWG	2	Fully Insulated	IDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Butt Splice, Closed End, Individual Openings Connector IDC 16-22 AWG Red
