2225J0630154JXT

Active

Knowles Syfer

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT

2225J0630154JXT

Active

Knowles Syfer

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT

Description Specifications Series Pricing CAD Documents

Description

General part information

2225J Series

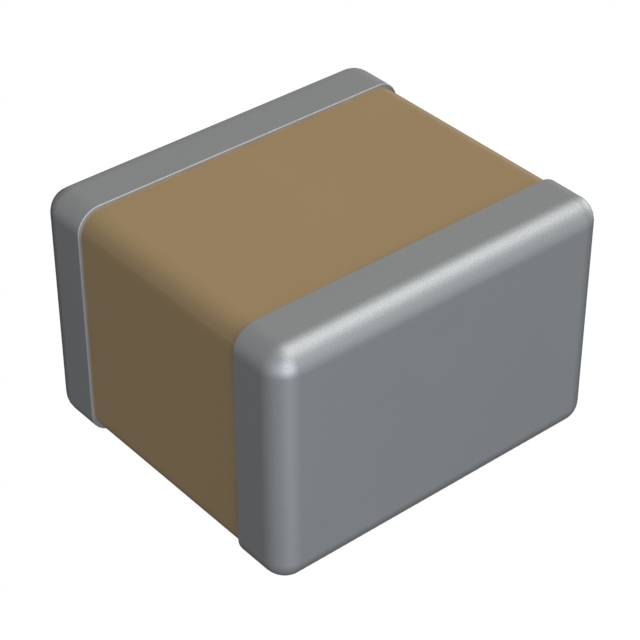

0.15 µF ±5% 63V Ceramic Capacitor X7R 2225 (5763 Metric)

Technical Specifications

Parameters and characteristics for this part

Specification	2225J0630154JXT

Applications	General Purpose
Capacitance	0.15 µF
Mounting Type	Surface Mount, MLCC
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	2225 (5763 Metric)
Size / Dimension Length	0.224 in
Size / Dimension Width	0.248 in
Temperature Coefficient	X7R
Thickness (Max)	0.098 in
Tolerance	5 %
Voltage - Rated	63 V

2225J Series

...

Part	Size / Dimension Length	Size / Dimension Width	Capacitance	Temperature Coefficient	Package / Case	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Rated	Applications	Thickness (Max)	Tolerance
Knowles Syfer 2225J0160473JFT	0.224 in	0.248 in	47 nF	C0G NP0 (1B)	2225 (5763 Metric)	MLCC Surface Mount	125 °C	-55 °C	16 V	High Reliability	0.098 in	5 %
Knowles Syfer 2225J6K00391JXT	0.224 in	0.248 in	390 pF	X7R	2225 (5763 Metric)	MLCC Surface Mount	125 °C	-55 °C	6000 V	General Purpose	0.098 in	5 %
Knowles Syfer 2225J2000474KXT	0.224 in	0.248 in	0.47 µF	X7R	2225 (5763 Metric)	MLCC Surface Mount	125 °C	-55 °C	200 VDC	General Purpose	0.098 in	10 %
Knowles Syfer 2225J0160150KFT	0.224 in	0.248 in	15 pF	C0G NP0 (1B)	2225 (5763 Metric)	MLCC Surface Mount	125 °C	-55 °C	16 V	High Reliability	0.098 in	10 %
Knowles Syfer 2225J0630273JFT	0.224 in	0.248 in	0.027 µF	C0G NP0 (1B)	2225 (5763 Metric)	MLCC Surface Mount	125 °C	-55 °C	63 V	High Reliability	0.098 in	5 %
Knowles Syfer 2225J0630154JXT	0.224 in	0.248 in	0.15 µF	X7R	2225 (5763 Metric)	MLCC Surface Mount	125 °C	-55 °C	63 V	General Purpose	0.098 in	5 %
Knowles Syfer 2225J3K00150GCT	0.224 in	0.248 in	15 pF	C0G NP0 (1B)	2225 (5763 Metric)	MLCC Surface Mount	125 °C	-55 °C	3000 V	General Purpose	0.098 in	2 %
Knowles Syfer 2225J0250221KFT	0.224 in	0.248 in	220 pF	C0G NP0 (1B)	2225 (5763 Metric)	MLCC Surface Mount	125 °C	-55 °C	25 VAC	High Reliability	0.098 in	10 %
Knowles Syfer 2225J6K00471MXT	0.224 in	0.248 in	470 pF	X7R	2225 (5763 Metric)	MLCC Surface Mount	125 °C	-55 °C	6000 V	General Purpose	0.098 in	20 %
Knowles Syfer 2225J0250152JCT	0.224 in	0.248 in	1500 pF	C0G NP0 (1B)	2225 (5763 Metric)	MLCC Surface Mount	125 °C	-55 °C	25 VAC	General Purpose	0.098 in	5 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
