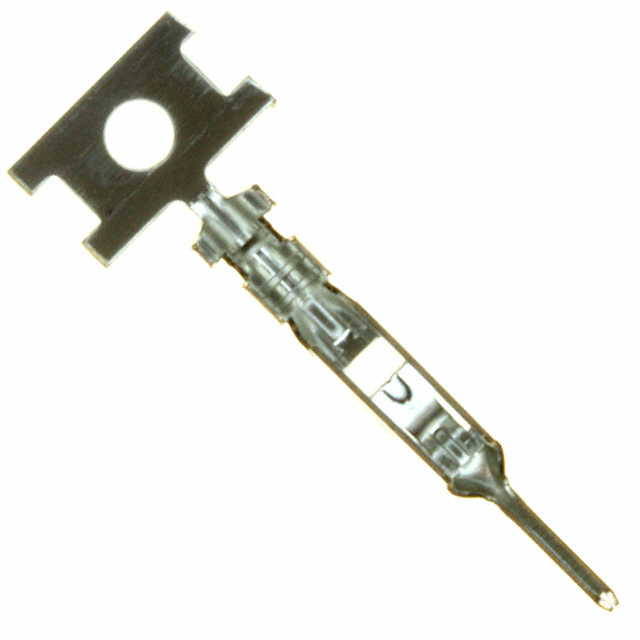

SIN-81T-3.6S
ActiveJST Sales America Inc.
CONN TERM WTB 12AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
SIN-81T-3.6S
ActiveJST Sales America Inc.
CONN TERM WTB 12AWG TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SIN-81T-3.6S |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Hole Diameter [diameter] | 3.55 mm |
| Hole Diameter [diameter] | 0.14 " |
| Insulation Diameter [Max] [diameter] | 4.19 mm |
| Insulation Diameter [Max] [diameter] | 0.165 in |
| Insulation Diameter [Min] [diameter] | 0.157 in |
| Insulation Diameter [Min] [diameter] | 3.99 mm |
| Length - Overall [x] | 0.362 in |
| Length - Overall [x] | 9.19 mm |
| Terminal Type | Through Board |
| Wire Gauge | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.04 | |
Description
General part information
SIN-81T Series
WTB Tin Terminal Connector 12 AWG
