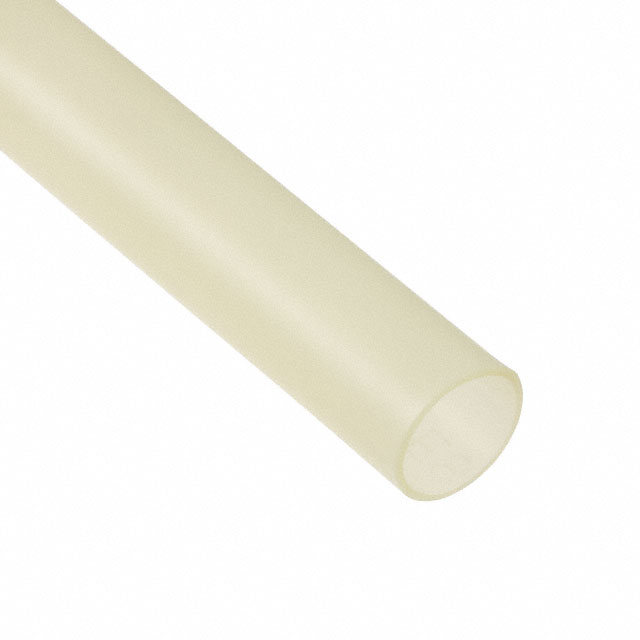

ES1000-NO.4-B7-X-75MM

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 0.7" X 0.246' CLEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTE Raychem Heat Shrink Shelf Life General Installation Procedure for Splice Sealing Products +4

ES1000-NO.4-B7-X-75MM

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 0.7" X 0.246' CLEAR

Deep-Dive with AI

DocumentsTE Raychem Heat Shrink Shelf Life General Installation Procedure for Splice Sealing Products +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ES1000-NO.4-B7-X-75MM

Color	Clear
Features	Fluid Resistant, Adhesive Lined, Abrasion Resistant
Inner Diameter - Recovered	4.45 mm
Inner Diameter - Recovered	0.175 in
Inner Diameter - Supplied [diameter]	0.7 "
Inner Diameter - Supplied [diameter]	17.78 mm
Length	0.246 ft
Length	75 mm
Length	2.95 in
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Recovered Wall Thickness	0.095 in
Recovered Wall Thickness	2.41 mm
Shelf Life	36 Months
Shrink Temperature	110 °C
Shrinkage Ratio	4 to 1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	0 °C
Type	Tubing, Semi Rigid

ES1000 Series

Part	Inner Diameter - Recovered	Inner Diameter - Recovered	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Color	Features	Recovered Wall Thickness	Recovered Wall Thickness	Material	Operating Temperature [Min]	Operating Temperature [Max]	Storage/Refrigeration Temperature [Max]	Shrink Temperature	Length	Length	Length	Shrinkage Ratio	Shelf Life	Type	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]	Length [x]	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]
TE Connectivity Raychem Cable Protection ES1000-NO.4-B7-X-75MM	4.45 mm	0.175 in	0.7 "	17.78 mm	Clear	Abrasion Resistant Adhesive Lined Fluid Resistant	0.095 in	2.41 mm	Polyolefin (PO) Irradiated	-40 °C	130 °C	35 °C	110 °C	0.246 ft	75 mm	2.95 in	4 to 1	36 Months	Tubing Semi Rigid
TE Connectivity Raychem Cable Protection ES1000-NO.2-B9-X-COIL	1.65 mm	0.065 in	0.293 in	7.44 mm	Clear	Abrasion Resistant Adhesive Lined Fluid Resistant	0.06 in	1.52 mm	Polyolefin (PO) Irradiated	-40 °C	130 °C	35 °C	110 °C				4 to 1	36 Months	Tubing Semi Rigid
TE Connectivity Raychem Cable Protection ES1000-NO.1-C1-X-STK			0.225 in	5.72 mm	Clear	Abrasion Resistant Adhesive Lined Fluid Resistant	0.047 "	1.19 mm	Polyolefin (PO) Irradiated	-40 °C	130 °C	35 °C	110 °C				4 to 1	36 Months	Tubing Semi Rigid	1.27 mm	0.05 in	1.22 m	4 ft
TE Connectivity Raychem Cable Protection ES1000-NO.4-B7-X-50MM	4.45 mm	0.175 in	0.7 "	17.78 mm	Clear	Abrasion Resistant Adhesive Lined Fluid Resistant	0.095 in	2.41 mm	Polyolefin (PO) Irradiated	-40 °C	130 °C	35 °C	110 °C	0.164 '	50 mm	1.97 "	4 to 1	36 Months	Tubing Semi Rigid
TE Connectivity Raychem Cable Protection ES1000-NO.1-C1-X-20MM			0.225 in	5.72 mm	Clear	Abrasion Resistant Adhesive Lined Fluid Resistant	0.047 "	1.19 mm	Polyolefin (PO) Irradiated	-40 °C	130 °C	35 °C	110 °C	0.066 ft	20 mm	0.79 in	4 to 1	36 Months	Tubing Semi Rigid	1.27 mm	0.05 in
TE Connectivity Raychem Cable Protection ES1000-NO.3-B8-X-65MM			0.427 in	10.85 mm	Clear	Abrasion Resistant Adhesive Lined Fluid Resistant			Polyolefin (PO) Irradiated	-40 °C	130 °C	35 °C	110 °C				4 to 1	36 Months	Tubing Semi Rigid	2.41 mm	0.095 in	65 mm	0.213 ft	2.56 "	1.91 mm	0.075 in
TE Connectivity Raychem Cable Protection ES1000-NO.1-C1-X-COIL			0.225 in	5.72 mm	Clear	Abrasion Resistant Adhesive Lined Fluid Resistant	0.047 "	1.19 mm	Polyolefin (PO) Irradiated	-40 °C	130 °C	35 °C	110 °C				4 to 1	36 Months	Tubing Semi Rigid	1.27 mm	0.05 in
TE Connectivity Raychem Cable Protection ES1000-NO.3-B8-X-STK			0.427 in	10.85 mm	Clear	Abrasion Resistant Adhesive Lined Fluid Resistant			Polyolefin (PO) Irradiated	-40 °C	130 °C	35 °C	110 °C				4 to 1	36 Months	Tubing Semi Rigid	2.41 mm	0.095 in	1.22 m	4 ft		1.91 mm	0.075 in
TE Connectivity Raychem Cable Protection ES1000-NO.1-A1-X-STK			0.225 in	5.72 mm	Clear	Abrasion Resistant Adhesive Lined Fluid Resistant No Markings	0.047 "	1.19 mm	Polyolefin (PO) Irradiated	-40 °C	130 °C	35 °C	110 °C				4 to 1	36 Months	Tubing Semi Rigid	1.27 mm	0.05 in	1.22 m	4 ft
TE Connectivity Raychem Cable Protection ES1000-NO.4-B7-X-STK	4.45 mm	0.175 in	0.7 "	17.78 mm	Clear	Abrasion Resistant Adhesive Lined Fluid Resistant	0.095 in	2.41 mm	Polyolefin (PO) Irradiated	-40 °C	130 °C	35 °C	110 °C				4 to 1	36 Months	Tubing Semi Rigid			1.22 m	4 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.87

Description

General part information

ES1000 Series

Heat Shrink Tubing, Clear, 4:1, Dual Wall, Shrinks To 4.45 mm [.175 in], Irradiated Modified Polyolefin, RAYCHEM ES1000
