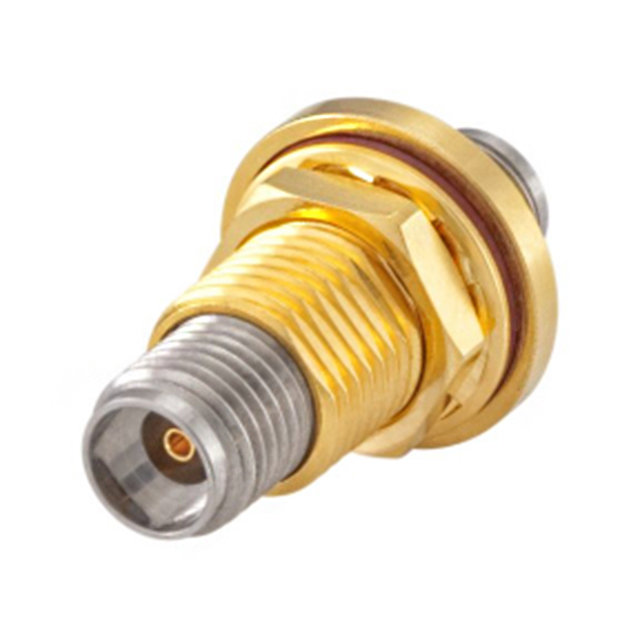

02K641-KH0S3

Active

Rosenberger

PRECISION 2.92 ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PRECISION 2.92 ADAPTER

Technical Specifications

Parameters and characteristics for this part

PRECISION 2.92 ADAPTER

Part	Body Material	Mating Cycles	Convert To (Adapter End)	Convert To (Adapter End)	Adapter Type	Center Gender	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Impedance	Dielectric Material	Center Contact Material	Style	Insertion Loss	Body Finish	Center Contact Plating	Conversion Type	Adapter Series	Mounting Feature	Convert From (Adapter End)	Convert From (Adapter End)
Rosenberger 02K641-KH0S3	Beryllium Copper	500	2.92 mm	OS-2.9 Jack, Female Socket	Jack to Jack	Female to Female	85 °C	-40 °C	40 GHz	50 Ohms	Polystyrene (PS)	Beryllium Copper	Straight	0.63 dB	Gold	Gold	Same Series	RPC-2.92 to RPC-2.92	Bulkhead	2.92 mm	Jack, Female Socket, OS-2.9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 523.45

General part information

Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohms
